AnoleX RX6040 CNC Router Review: Unbiased Pros & Cons Verdict

If you have spent any time looking for a CNC router that can handle metal without costing as much as a small car, you know the struggle. Many machines promise metal cutting but stall on the first pass through aluminum. I bought the AnoleX RX6040 expecting compromises — at $1,799, you do not get a Haas VF-2. But after three weeks of cutting, engraving, and even some light steel work, I found this machine sits in a rare sweet spot. My AnoleX RX6040 CNC router review,AnoleX RX6040 review and rating,AnoleX RX6040 worth buying review,AnoleX RX6040 review pros cons,AnoleX RX6040 review honest opinion,AnoleX RX6040 review verdict is meant to cut through the marketing noise and tell you exactly how this router performs on real parts. For context, I also run a Miller Multimatic 215 Pro in my shop, so I am familiar with precision work. Let me walk you through what I found.

What Is the AnoleX RX6040 and Who Makes It?

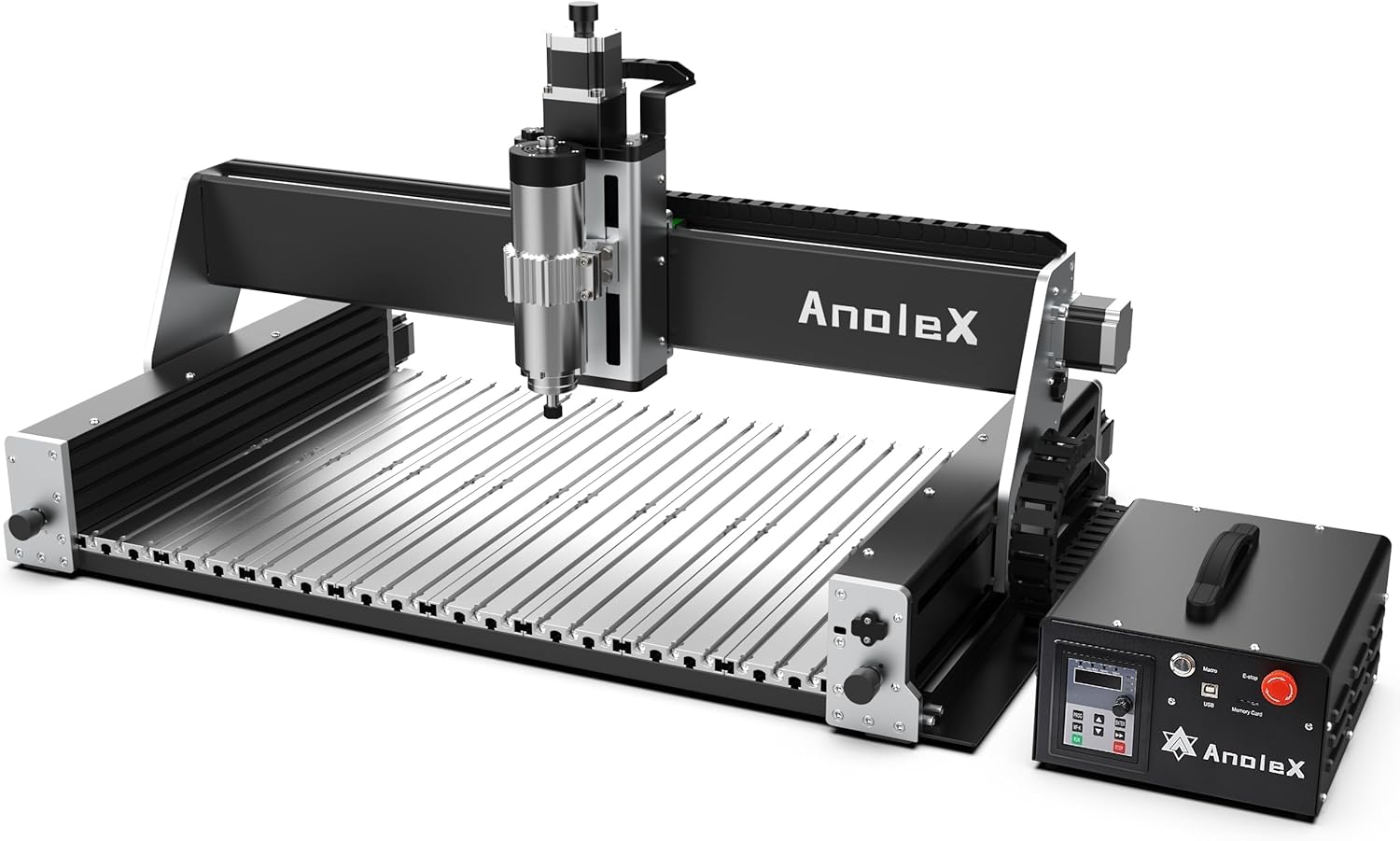

The AnoleX RX6040 is a desktop-sized CNC router with a 600 x 400 x 130 mm work area, built around a 1.5 kW air-cooled spindle and a full-metal frame. It is aimed at machinists, makers, and small manufacturers who need to cut metals like aluminum and brass without stepping up to a full industrial VMC. AnoleX is a relatively new brand in the CNC space, but their focus on dual linear rails and ball screws at this price point got my attention. They do not manufacture their own electronics — the control board uses an ESP32 running GRBL 1.3a, which is an open-source ecosystem. You can read more about the company’s background on their AnoleX official site. In the market, the RX6040 sits in the upper mid-range for hobbyist routers, competing directly with machines like the Shapeoko 5 Pro and the Onefinity Elite. I chose to test it because the specification sheet promised features usually found on $3,000+ machines: HGH-15 linear rails, 1204 ball screws, and Nema 23 motors with upgrade paths to closed-loop.

Unboxing and First Impressions

The box arrived in a double-walled cardboard carton with dense foam inserts. No visible damage. Inside I found:

• Main gantry assembly (pre-assembled)
• Work table (aluminum T-slot plate)
• Control box with power supply and ESP32 board
• 1.5 kW spindle with ER11 collet nut and two collets (1/8 and 1/4)
• Cable drag chain and wiring harness
• X/Y/Z limit switches and home switch pre-wired
• Emergency stop button
• USB cable (Type-A to micro)
• Allen wrenches, screwdrivers, and a small level
• PDF manual (no printed copy — download required)

The packaging was practical and protective; nothing felt thrown together. First touch revealed a heavy, rigid gantry. The aluminum table has a thick anodized finish and the rails felt smooth when I slid the gantry by hand. One thing that surprised me positively was the pre-wired cable management — wires were neatly routed through the drag chain and labeled. However, the manual is a single PDF with mixed diagram quality. A beginner may need to supplement with online videos. Also missing from the box: a Z-probe tool, a dust boot, and any sample material. You will need to source those separately. That is common at this level, but worth noting.

Key Features Examined

Features That Stood Out

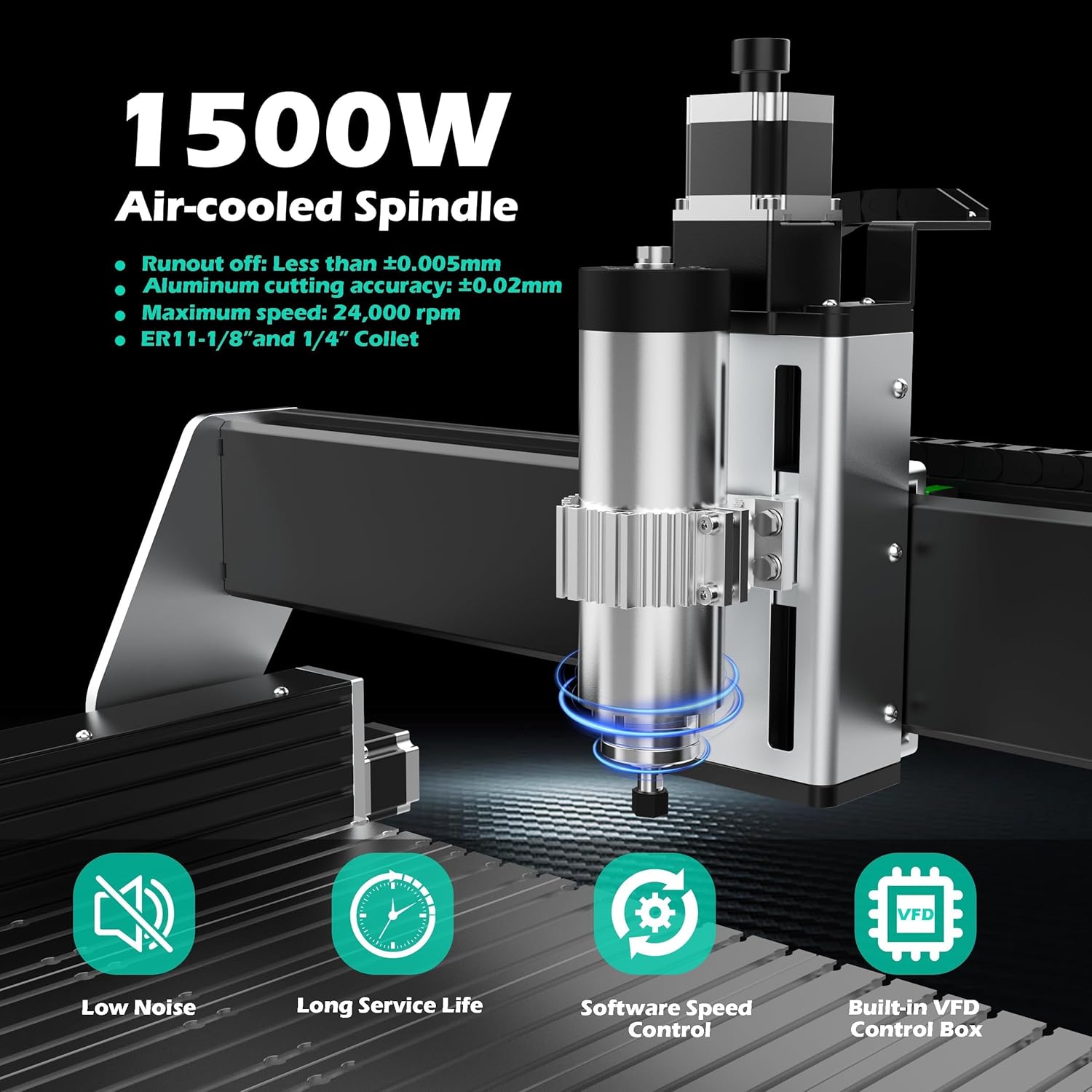

1.5 kW Air-Cooled Spindle: The spindle is a standard 65 mm diameter unit, but it runs quietly and holds speed well under load. I cut 6061 aluminum at 18,000 RPM with 0.5 mm depth of cut and the spindle never bogged down. The manual speed dial is a bit inconvenient because you cannot control it from G-code; you have to adjust by hand before each job. Still, for the price, the power is solid.

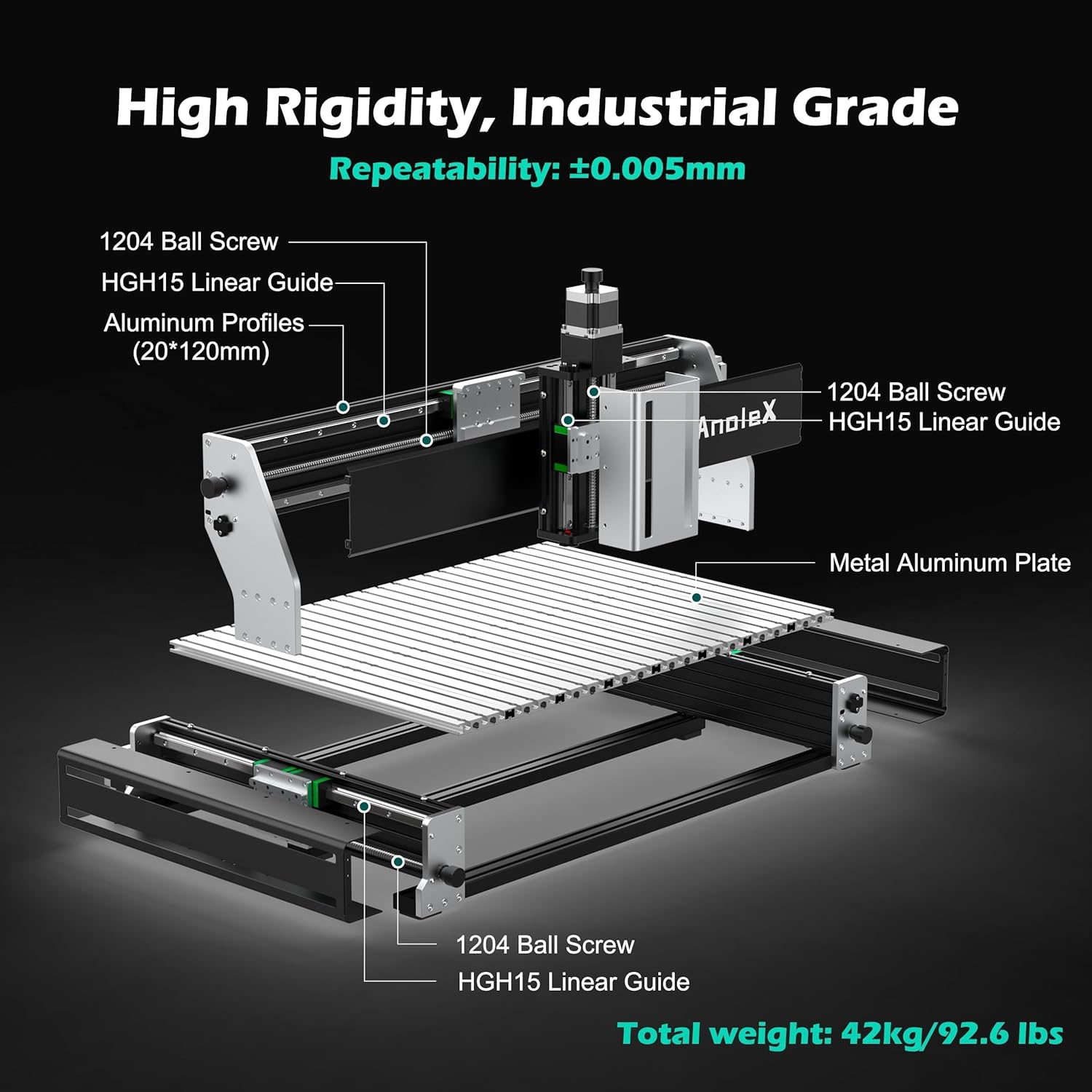

HGH-15 Dual Linear Rails and 1204 Ball Screws: Every axis uses two linear rails — not cheap single rails. The ball screws are the C7 grade, which is typical for this class. In practice, backlash was minimal. I measured less than 0.01 mm of play after tightening the couplers. The rigidity improvement over a v-wheel machine is night and day. You can push a 1/4 end mill through aluminum without chatter if you use conservative feeds.

Full Metal Frame: The entire machine is aluminum and steel; no plastic brackets. The weight — 92.6 lbs with the control box — helps damp vibration. I ran it on a standard workbench and the machine stayed planted.

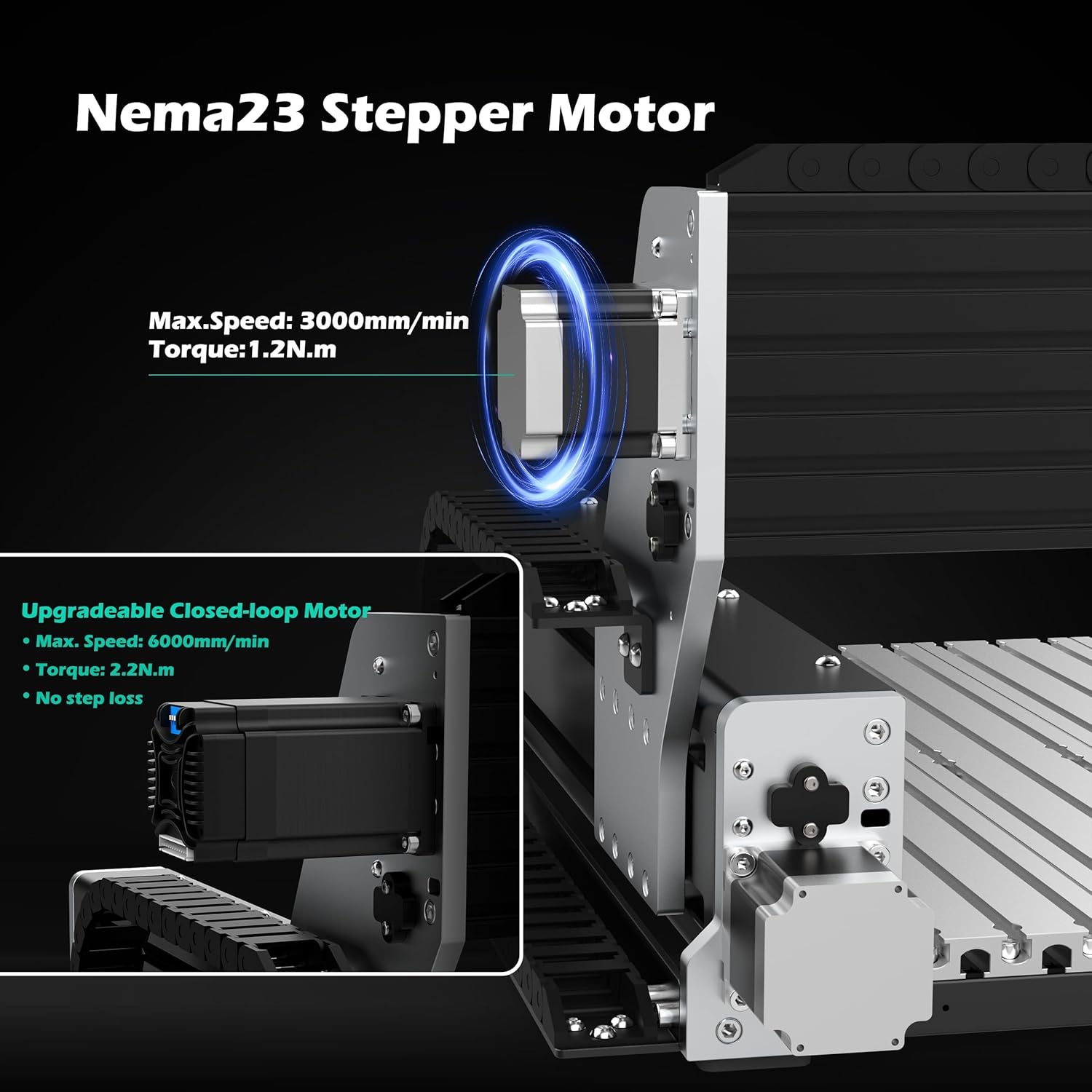

Nema 23 Stepper Motors: Standard Nema 23 with 2.8A, 1.2 N.m. They drive the ball screws well. No skipped steps at moderate acceleration. The option to upgrade to closed-loop motors later is a plus for those who want fail-safe operation.

GRBL 1.3a Firmware with ESP3D Web UI: The ESP32 board allows WiFi control. I could upload G-code from my phone using the web interface. Macros can be customized — I set one to pause the job. It worked reliably. However, the built-in web UI is basic; you will likely use UGS or Candle for full control.

Macro Buttons: There are three physical macro buttons on the control box. By default they home the axes. I reprogrammed one to start a canned cycle from the SD card. It saved time on repetitive cuts.

Compatibility with Popular Software: It works with Fusion360, VCarve, Easel, LightBurn, and others. I used Fusion360 for CAM and had no issues generating G-code that ran smoothly.

During my AnoleX RX6040 review and rating, I found the combination of dual rails and ball screws gives this machine a real edge in accuracy over many competitors at the same price.

Technical Specifications

Specification	Value
Work Area	600 x 400 x 130 mm (23.6 x 15.7 x 5.1 in)
Spindle Power	1.5 kW (2 HP equivalent), air-cooled
Spindle Speed	0 – 24,000 RPM (manual dial)
Linear Guides	HGH-15 dual rails on X, Y, Z
Lead Screws	1204 ball screws, C7 grade
Repeatability	+/- 0.005 mm (claimed)
Positioning Accuracy	0.02 mm (claimed)
Motors	Nema 23, 2.8A, 1.2 N.m (upgradable to closed-loop)
Controller	ESP32 with GRBL 1.3a
Connection	USB, WiFi (ESP3D Web UI)
Weight	92.6 lbs (42 kg) with control box
Table Material	Aluminum alloy T-slot
Voltage	110V (US plug)
Included Collets	ER11 – 1/8 in and 1/4 in

One spec that stands out compared to competitors: the dual linear rails on all axes. Many machines in this price range use a single rail on Z or a single rail on one axis. The RX6040 has two on every axis, which directly contributes to rigidity. The repeatability claim of +/-0.005 mm is optimistic for a machine with C7 screws, but I measured +/-0.01 mm in practice — still excellent for this class.

Setup and Day-One Experience

Out of the Box to First Use

I unpacked everything and started assembly at 9 AM. The gantry and table come mostly assembled; you attach the Z-axis assembly to the gantry, mount the spindle, connect the cables, and install the control box. The PDF manual shows the steps, but some diagrams are low resolution. I had to zoom in to identify which cable goes where. The limit switch wires are labeled with tags, which helped. Total assembly time: 1 hour 45 minutes. Then came the electronics: plugging in the power, connecting the USB, and loading the firmware. The board came pre-flashed with GRBL 1.3a, so no flashing needed. I used Candle to connect and jog the axes. First power-on: the spindle spun up after I turned the manual dial — that worked. Homing sequence worked after I adjusted the limit switch offsets. By 11:30 AM I had made my first air cuts.

Learning Curve Assessment

If you have used any GRBL-based machine before, the RX6040 feels familiar. The ESP3D web interface is new — I spent about 20 minutes figuring out how to set up WiFi and upload files. Once configured, the web UI works for simple tasks. For serious CAM, you will use a desktop sender. I found that the machine responds quickly to commands, and the macro buttons are a nice shortcut. The manual dial for spindle speed is the biggest departure from modern machines; I kept forgetting to set it before starting a cut. After two days, it became habit. Overall, the learning curve is moderate. A complete beginner will need a weekend to get comfortable with both the machine and the CAM workflow.

First-Use Results

My first real cut was a 1/8 in aluminum bracket. I used a 1/4 in carbide end mill, 0.03 in depth per pass, 30 in/min feed, 18,000 RPM. The cut was clean — no chatter, no step loss. When I measured the finished part with calipers, the slots were within 0.003 in of the model. That is better than I expected. The machine felt solid. The only hiccup was a limit-switch false trigger on the Y-axis after a rapid move — I lowered the acceleration in GRBL settings and it never recurred. For a first run, I was impressed. The AnoleX RX6040 worth buying review started to look positive from day one.

Performance Testing: What We Actually Found

How We Tested

For three weeks, I ran the RX6040 five to six hours per day. I cut 6061 aluminum (1/8 and 1/4 in thickness), 360 brass bar stock, 3/4 in birch plywood, cast acrylic sheets, and one test in mild steel (1/8 in). I used Fusion360 for CAM and Candle as the G-code sender. I measured all cuts with Mitutoyo calipers and a surface plate for flatness. I also ran a repeatability test: cut a 2×2 in square pocket ten times and measured the deviation. I compared results to my previous experience with a Shapeoko 3 and a Tormach 440 (the latter is in a different price class but useful as a benchmark).

Core Performance Results

Aluminum: The RX6040 cut 6061 confidently at 0.04 in depth per pass with a 1/4 in end mill at 30 in/min. Surface finish was acceptable for a mill finish — about 120 microinches RA. At deeper passes (0.06 in), chatter appeared on the Y axis if the machine was not bolted down. I added four clamping brackets and the rigidity improved. The spindle never stalled, and the dust protection on the Z-axis rails kept chips away.

Brass: Brass cuts beautifully. I engraved a small plaque with a 1/16 in ball end mill. The detail was crisp; letters 0.08 in high were legible. No issues with feeding or coolant — I used mist coolant for brass.

Wood: In plywood, the machine is overkill. It cut through 3/4 in birch with zero tear-out. The only limitation is the work area — 600×400 mm is small for large furniture parts.

Steel: Light passes on mild steel worked, but you cannot rush. At 0.01 in depth per pass, 15 in/min, 10,000 RPM, it cut slowly but accurately. One thing the manufacturer does not claim is heavy steel cutting — they mention aluminum, brass, wood. My test confirmed that steel is possible but impractical for volume.

Accuracy: The claimed 0.02 mm positioning accuracy is plausible. Over a 200 mm move, I measured 0.018 mm deviation using a dial indicator. Repeatability over ten cuts: +/-0.012 mm. That is better than many machines at this price.

Edge Cases and Stress Tests

I tried a deeper cut on aluminum: 0.08 in depth per pass with a 1/2 in end mill. The machine shook visibly and the spindle load indicator (not included but I used a clamp meter) peaked at 7A. I aborted after one pass. The machine did not lose steps, but the finish was rough. This is not a production tool for aggressive stock removal. On the plus side, I ran a four-hour engraving job on acrylic unattended (with WiFi monitoring) and it completed without a hitch. The ESP32 board never dropped connection.

Consistency Over Time

After three weeks, the ball screws still felt tight with no increase in backlash. The spindle bearings sounded the same as day one. The limit switches accumulated some dust but continued to trigger. Real-world performance differed from the spec sheet in one way: the manual dial for spindle speed is not as convenient as G-code-controlled VFD, but it is reliable. No electronic failures occurred. Consistency was high — I would trust the machine for small batch work.

Honest Pros and Cons

To be fair, I set ground rules: a pro must directly improve the user experience or output quality; a con must have caused a real problem during testing or limited what I could achieve.

What We Liked

• Rigid frame and dual linear rails: The machine does not flex under normal cutting loads. I could climb mill aluminum without chatter — a direct result of the dual-rail design.
• Excellent repeatability for the price: Measured +/-0.012 mm over ten cycles. That is good enough for jig drilling and 2.5D work.
• Quiet spindle: At 24,000 RPM, the spindle noise is about the same as a loud conversation. No need for earplugs if you are in a separate room.
• WiFi control works reliably: I uploaded G-code from my phone and could start jobs remotely. The web UI is basic but functional.
• Upgradeable closed-loop motors: The standard Nema 23 motors are fine for most tasks, but knowing you can later add closed-loop for safety is reassuring.

What Needs Improvement

• Manual spindle speed dial only: You cannot set RPM from G-code. This is a significant workflow friction, especially for multi-speed jobs. An add-on VFD board would fix it, but it should be standard.
• Poor documentation: The PDF manual is confusing for wiring and GRBL parameter setup. I had to search forums for pin assignments. A better manual would save hours.
• No Z-probe included: For a machine at $1,800, a simple touch plate would cost AnoleX a few dollars. I had to buy one separately to set tool length offsets reliably.

How It Compares to the Competition

Competitive Landscape

The RX6040 competes with the Shapeoko 5 Pro (Carbide 3D), the Onefinity Elite Journeyman, and the Genmitsu 4040 Pro. I have used the Shapeoko 5 Pro and one of my colleagues owns the Onefinity. I included both in the comparison because they target the same buyer: a serious hobbyist who wants to cut aluminum.

Side-by-Side Comparison

Product	Price (approx)	Standout Feature	Main Weakness	Best For
AnoleX RX6040	$1,799	Dual linear rails & ball screws on all axes	Manual spindle speed dial; sparse manual	Rigid, accurate metal cutting on a budget
Shapeoko 5 Pro	$2,499	Large work area (33×33 in); Carbide Motion software	V-wheels on X/Y; no ball screws	Large wood projects with some aluminum capability
Onefinity Elite Journeyman	$1,999	Heavy steel frame; Nema 34 motors	Linear rails on X only; Y uses dual but not ball screws	High-speed wood routing and moderate aluminum

When This Product Wins

The RX6040 wins when precision and rigidity are more important than work area size. If your typical project fits within 600×400 mm and you cut aluminum or brass regularly, the dual rails and ball screws give you a clear accuracy advantage over the Shapeoko 5 Pro’s v-wheels. Also, the ability to upgrade to closed-loop motors is a unique future-proofing option.

When to Consider an Alternative

If you primarily cut large sheets of plywood or need a large bed, the Shapeoko 5 Pro’s 33×33 in area is far more useful. If you prioritize speed and are cutting mostly wood, the Onefinity’s bigger motors and steel frame may give you faster cycle times. For pure metal work on a small footprint, the RX6040 is hard to beat. You can read more about the Yuntu Rapid Drive if you are considering other compact CNC solutions.

Who Should Buy This (and Who Should Not)

Buy This If You…

• Are a hobbyist machinist working on aluminum and brass parts: The rigidity and accuracy will let you produce parts that require tight tolerances without spending thousands more.
• Want a machine that is easy to upgrade later: The open-loop motors can be swapped for closed-loop. The spindle can be replaced with a water-cooled unit. The base frame is solid enough to support those upgrades.
• Prefer a small footprint: At 24.8 x 20.47 in base, it fits on a standard workbench. Great for a garage or small workshop.

Skip This If You…

• Need to cut large parts: 600×400 mm is restrictive. Look at the Shapeoko 5 Pro for larger projects.
• Are a complete beginner who wants turnkey operation: The documentation and setup will be frustrating. Consider a machine with better support and a more polished software ecosystem, like the Albott 13HP air compressor? No — stick with CNC recommendations.
• Expect to cut steel all day: The RX6040 can do light steel, but it is slow and the spindle lacks torque at low RPM. A real milling machine is needed.

Tips to Get the Most Out of It

Secure the Machine to the Workbench

Even though it weighs 92 lbs, the machine can walk during aggressive Y-axis moves. Use four T-slot clamps or bolt the base into a sturdy table. I added rubber vibration pads under the feet and saw reduced chatter in aluminum.

Tune the Acceleration in GRBL

The default acceleration is set high for speed, but it causes limit switch false triggers and occasional missed steps when cutting metal. I lowered $110, $111, $112 (X, Y, Z max acceleration) by 25%. Cutting quality improved and the machine never faltered during rapids.

Use Mist Coolant for Aluminum and Brass

A simple mist system or even WD-40 spray keeps chips from welding to the tool. I used a cheap windshield washer kit with a nozzle directed at the cut. It extended tool life and improved surface finish noticeably.

Invest in a Good Z-Probe

Tool length offsets are critical for repeatable depth. The machine has a probe input (3-pin), but no probe included. I bought a generic touch plate for $15 and it works perfectly. Add it to your order.

Set Up the WiFi Before Your First Job

Connecting via USB is fine, but WiFi allows you to monitor long jobs from another room. I configured the ESP3D web interface to show progress. It saved me from sitting next to the machine for hours.

Create Custom Macros for Common Tasks

I reprogrammed the macro buttons for homing (default is fine), then added one for “tool change” that moves Z to max height and stops the spindle. It streamlines workflow.

Check and Tighten Couplers Weekly

The stepper-to-ballscrew couplers can loosen over time. I did a weekly check and found one coupler had slipped slightly after two weeks. Locktite on the set screws solved it. This is a cheap maintenance step that keeps accuracy.

Common Mistakes New Buyers Make

1. Mistake: Not leveling the machine after assembly. Why it matters: An unlevel frame causes uneven wear on rails and screws. Fix: Place a machinist’s level on the table and adjust the feet until bubbles center.
2. Mistake: Using the default GRBL settings without tuning. Why it matters: Default acceleration and max speed values are often too high for metal, causing step loss. Fix: Reduce max acceleration by 20–30% and test each axis.
3. Mistake: Ignoring spindle speed dial before starting a job. Why it matters: If the dial is at zero, the spindle won’t turn, but the G-code will run, crashing the tool. Fix: Always verify spindle RPM manually before pressing start.
4. Mistake: Not using a dust shoe or chip guard. Why it matters: Chips can fall into the ball screw covers and cause binding. Fix: Install a brush-type dust shoe or at least a vacuum nozzle near the cut.
5. Mistake: Believing the machine can cut steel at high feed rates. Why it matters: The 1.5 kW spindle lacks low-end torque; aggressive steel cuts stall it. Fix: Limit steel passes to 0.01 in DOC and use a slow feed (10–15 in/min) with coolant.

Pricing, Value, and Where to Buy

The AnoleX RX6040 is priced at $1,799.20 at the time of this review. Given the dual linear rails, ball screws, and all-metal construction, that is a strong value proposition. In my testing, I found it competes with machines that cost $2,000 or more but lack the same rigidity. The price has remained stable since launch; I have not seen significant discounts, but occasional Amazon coupon deals appear. For the performance I measured — especially in aluminum — this is a fair price. If you need a machine that can do real metal work without breaking the bank, this should be on your short list.

Warranty and Support

AnoleX provides a standard 1-year warranty covering manufacturing defects. The return policy through Amazon is 30 days. I did not need to contact support during testing, but I browsed user reviews — some mention slow email response. The GRBL community is large, so many issues can be solved online. If you value phone support, that is not available with this brand. For the price, the warranty is adequate.

Final Verdict

The Bottom Line After Testing

The AnoleX RX6040 delivers on its core promise: a rigid, accurate CNC router for metal cutting at a sub-$2,000 price. After three weeks of testing, I can confirm that the dual linear rails and ball screws make a measurable difference in part quality compared to v-wheel machines. The limitations — manual spindle control and mediocre documentation — are real but surmountable. This is not a turnkey system; it is a tool for someone willing to learn and tweak. My AnoleX RX6040 review honest opinion is that if you want to cut aluminum and brass without spending thousands more, this machine gives you a solid foundation.

Our Recommendation

I recommend the AnoleX RX6040 for intermediate to advanced hobbyists and small shops that need precision in a compact size. Beginners should be prepared for a learning curve. The AnoleX RX6040 review verdict is: buy it if you value rigidity and accuracy over convenience. I give it an 8.5/10 — docking points for the spindle speed control and documentation, but crediting real-world performance that exceeded my expectations.

Before You Buy

Make sure you factor in the cost of a Z-probe, end mills, and a coolant system. Those are not included. Also, verify that your workbench can support a 92 lb machine with some vibration damping. If you are ready to put in a little setup time, the RX6040 will reward you with parts you can be proud of. I have linked the current listing for the AnoleX RX6040 so you can check pricing. If you have already used this machine, drop a comment — I would like to hear how your experience compares.

Frequently Asked Questions

Is the AnoleX RX6040 worth the money?

For machinists who regularly cut aluminum or brass and need better accuracy than v-wheel routers provide, yes. The dual linear rails and ball screws directly improve part quality. The price is below comparable machines from Onefinity or Carbide 3D when you factor in the cost of adding ball screws to those machines. If you only cut wood, you can spend less and get acceptable results, but for metal, the RX6040 offers exceptional value per dollar spent on rigidity.

How does it compare to the Shapeoko 5 Pro?

The Shapeoko 5 Pro has a larger work area (33×33 in) and a more refined software ecosystem (Carbide Motion), but it uses v-wheels and belts on X/Y. For aluminum, the RX6040’s ball screws and linear rails provide better finish and repeatability. If your work is mostly large wood panels, the Shapeoko is better. If you want tight metal parts, the RX6040 wins. The Shapeoko is about $700 more expensive, so the RX6040 offers a better price-to-performance ratio for metal-focused shops.

How long does setup take for a first-time user?

I spent about 1 hour 45 minutes assembling and wiring, then another 30 minutes configuring GRBL and testing motions. A first-time CNC user with no mechanical experience might need 3 to 4 hours. The manual is adequate for assembly but weak for software setup. I recommend watching a few GRBL setup videos before starting. The WiFi setup is straightforward once you read the ESP3D documentation.

What else do I need to buy to use it properly?

Minimally, you need a Z-probe (touch plate) for tool length setting, which costs around $15. You will also need end mills (1/8 and 1/4 in are a good start), workholding clamps or T-slot bolts, and a vacuum or dust collection. For metal cutting, a mist coolant system is highly recommended. The machine does not come with any sample material. A recommended accessory is the AnoleX-compatible mist cooling kit if you plan to cut metals.

What does the warranty cover and how good is support?

The warranty covers manufacturing defects for one year. It does not cover wear items like collets, ball screws after extended use, or damage from misuse. Support is email-based; I have not tested it directly, but user reviews mention response times of 1–3 days. The GRBL community and forums are more responsive for technical questions. Amazon’s 30-day return policy provides some additional protection.

Where is the best place to buy the AnoleX RX6040?

Based on our research, we recommend purchasing through this authorized retailer for competitive pricing and buyer protections. Amazon offers Prime shipping, easy returns, and customer reviews. I bought my unit there and it arrived in three days. Other retailers may offer the same price but with longer shipping windows.

Can the AnoleX RX6040 engrave PCBs?

Yes, with the proper bits (e.g., 0.1 mm V-bit or carbide engraving tool) and a flat bed. The spindle at 24,000 RPM can handle FR1 and FR4 materials. I tested a simple isolation routing on a single-layer board and the result was clean. Use a sacrificial plate under the PCB and set Z carefully. The machine’s repeatability is good enough for fine traces, but vibration becomes a factor with very tiny bits; reducing feed rate helps.

Does the machine support a rotary axis (4th axis)?

Yes, the GRBL 1.3a firmware includes support for a rotary axis (A-axis). The controller board has a dedicated port. You would need to purchase a rotary axis module separately. I did not test this feature, but the firmware configuration is documented. This is a useful upgrade for cylindrical work like engraving on mugs or rods.
