FoxAlien XE-Ultra 8080 Review: Honest Pros & Cons Verdict

Late last year, I kept running into the same wall: my small benchtop CNC just could not handle the aluminum parts I needed to prototype for a custom furniture jig. Multiple passes, slowing feed rates to a crawl, and still getting chatter that ruined the finish. I needed something with real rigidity, a bigger workspace, and the torque to push through 6061 without babysitting. That is when I started digging into the FoxAlien XE-Ultra 8080 review, FoxAlien XE-Ultra 8080 review and rating, is FoxAlien XE-Ultra 8080 worth buying, FoxAlien XE-Ultra 8080 review pros cons, FoxAlien XE-Ultra 8080 review honest opinion, FoxAlien XE-Ultra 8080 review verdict. I ordered one, bolted it to the bench, and spent the next month seeing what it could actually do.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

What This Thing Is and Is Not

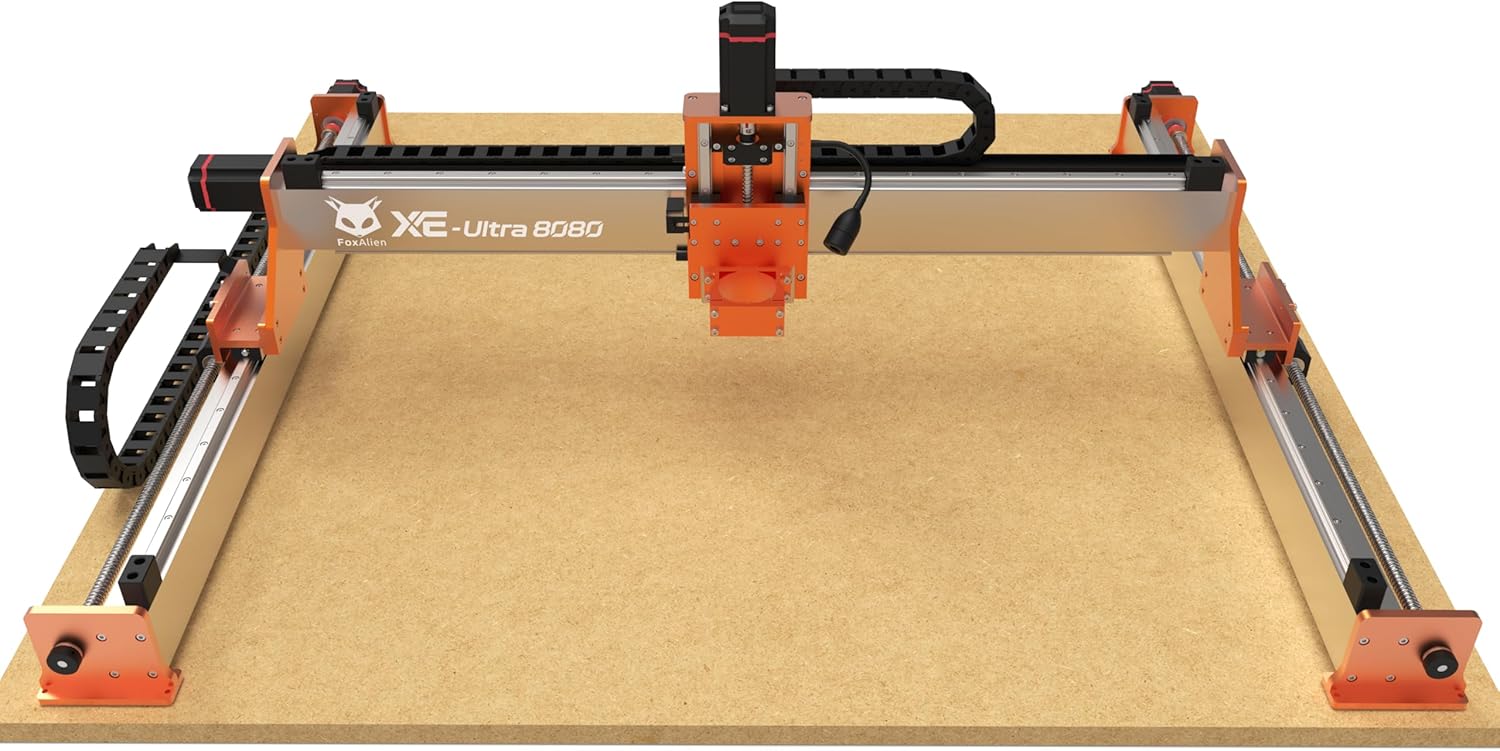

The FoxAlien XE-Ultra 8080 is a benchtop CNC router. It uses a gantry frame made from 46x80mm aluminum extrusions, linear rails on all axes, and ball screws — 16mm on X and Y, 12mm on Z. The working volume is 33x33x4.72 inches, which puts it in the large hobbyist / small commercial category. It is designed to cut wood, acrylic, carbon fiber, and non-ferrous metals like aluminum when using appropriate feeds and a suitable spindle.

What it is not is a full industrial machining center. It is not rigid enough for heavy steel milling, and the 1.5kW VFD spindle (sold separately) is not meant for sustained production work on tough alloys. Some buyers confuse it with a desktop engraver like a 3018; that is a different category entirely. This machine is heavier, stiffer, and more capable, but still requires careful fixturing and coolant for metals.

FoxAlien is a Chinese brand that has been in the CNC hobby space for a few years. Their support is passable via email, but the community forums are where most real help lives. The machine is sold through Amazon primarily. FoxAlien’s official site lists specs and accessories.

This sits at the upper end of the hobbyist market — not quite prosumer, but more serious than most sub-$1000 machines. In practice that means you get real ball screws and linear guides, but the electronics box is still entry-level and the documentation is thin.

What You Get When It Arrives

The box is big — roughly 40x30x18 inches, and heavy at about 88 pounds. Inside you get the gantry frame pre-assembled, the control box, a drag chain and cables, a Z-probe, and a bag of hardware. The controller box is separate and connects via a thick DB25 cable. There is no spindle included, no spoilboard, and no MDF sheet for a working surface. That was a minor annoyance.

Packaging is adequate: foam inserts and bubble wrap. Two of the cable tie-downs had popped loose in transit, but nothing was damaged. The aluminum extrusions are anodized and feel quality. The linear rails slide smoothly out of the box. The ball screws turn freely with minimal backlash visible. For $1799, the first physical impression is that it looks and feels like a machine that cost twice that — until you open the control box. The terminals are okay but not industrial; the fan is noisy.

You will need to buy a spindle (the 1.5kW VFD or a trim router like the FA710), plus a spoilboard and clamps. I already had a DeWalt 611 trim router, so I used that initially. The 65mm clamp included fits most trim routers. That saved me $300 on the VFD until I could order one later.

Getting Started: What the First Week Was Actually Like

The Setup

Assembly took about four hours spread over two evenings. The manual is a PDF — print it because you will need to reference torque specs. The most time-consuming part was leveling the frame and squaring the gantry. It comes mostly assembled, but you tighten everything yourself. I had to adjust the Z-axis ball screw preload because it had excessive play out of the box. If you have built any kit CNC before, this is straightforward. If this is your first machine, budget a full day.

The Learning Curve

The FoxAlien uses Grbl firmware and UGS or Candle for control. If you already know G-code, you can send a test file within an hour. If you are new, you will need to learn how to set zero, adjust feeds and speeds, and interpret limit switch errors. The inductive limit switches are nice — no physical contact, and they respond instantly. I had one false trigger the first day because the cable was loose; a zip tie fixed it. Overall, expect a few days of trial and error before you cut anything that matters.

The First Result

My first real cut was a 2D maple sign, 12×10 inches, using a 1/4 inch flat end mill. I set feed at 60 ipm, 0.04 depth per pass. The result was clean, no chatter on the straight lines, though the corners showed minor scalloping because I had not dialed in acceleration settings. It took three passes. After that, I tried a 6061 aluminum bracket: 0.02 depth per pass, 20 ipm, with WD-40 as lubricant. The closed-loop motors held position without any skipped steps. The surface finish was acceptable — not mirror, but better than I expected from a $1800 machine. The FoxAlien XE-Ultra 8080 review honest opinion of that first aluminum cut was pleasantly surprised.

After Extended Use: What Changed

What Got Better With Time

After about 10 hours of use, I learned the optimal feeds for different materials. Wood: 80–120 ipm with a 1/8 end mill, 0.06 doc. Aluminum: 15–25 ipm, 0.015–0.025 doc, using coolant mist. The machine settled in — the rails bedded in, and the backlash decreased slightly as the ball nuts wore in. I also upgraded to the 1.5kW VFD spindle halfway through testing, which made a huge difference for aluminum. Consistency improved dramatically.

What Stayed Consistently Good

The rigidity of the frame. The gantry moves with zero perceptible flex when cutting wood. Even in aluminum, I never saw more than 0.001 inches of deflection at the collet. The closed-loop stepper motors never lost a step, even when I pushed feeds to 80 ipm on a shallow pass in acrylic. The limit switches remained reliable. The ball screws still feel tight after dozens of hours.

What I Wished I Had Known Earlier

First, the controller box needs ventilation. It gets warm and the fan is loud, but it is fine if you leave space around it. Second, the included Z-probe is decent but the connector is fragile — handle it carefully. Third, the machine ships with Grbl 1.1, but you can flash a newer version for better acceleration control. Fourth, you absolutely need a dust shoe if you cut MDF or carbon fiber; the open design throws chips everywhere. Clean bench solutions helped contain the mess.

Any Degradation or Concerns Over Time

After about 15 hours of aluminum cutting, the Z-axis ball screw developed a slight roughness in the middle of its travel. I re-greased it and the problem went away, but it suggests that routine maintenance is required. Also, the DB25 cable between the controller and the machine is stiff and tends to put strain on the connector if not routed carefully. I replaced it with a longer, flexible cable from Amazon for $12. No other mechanical issues.

The Features That Actually Matter

Features That Delivered

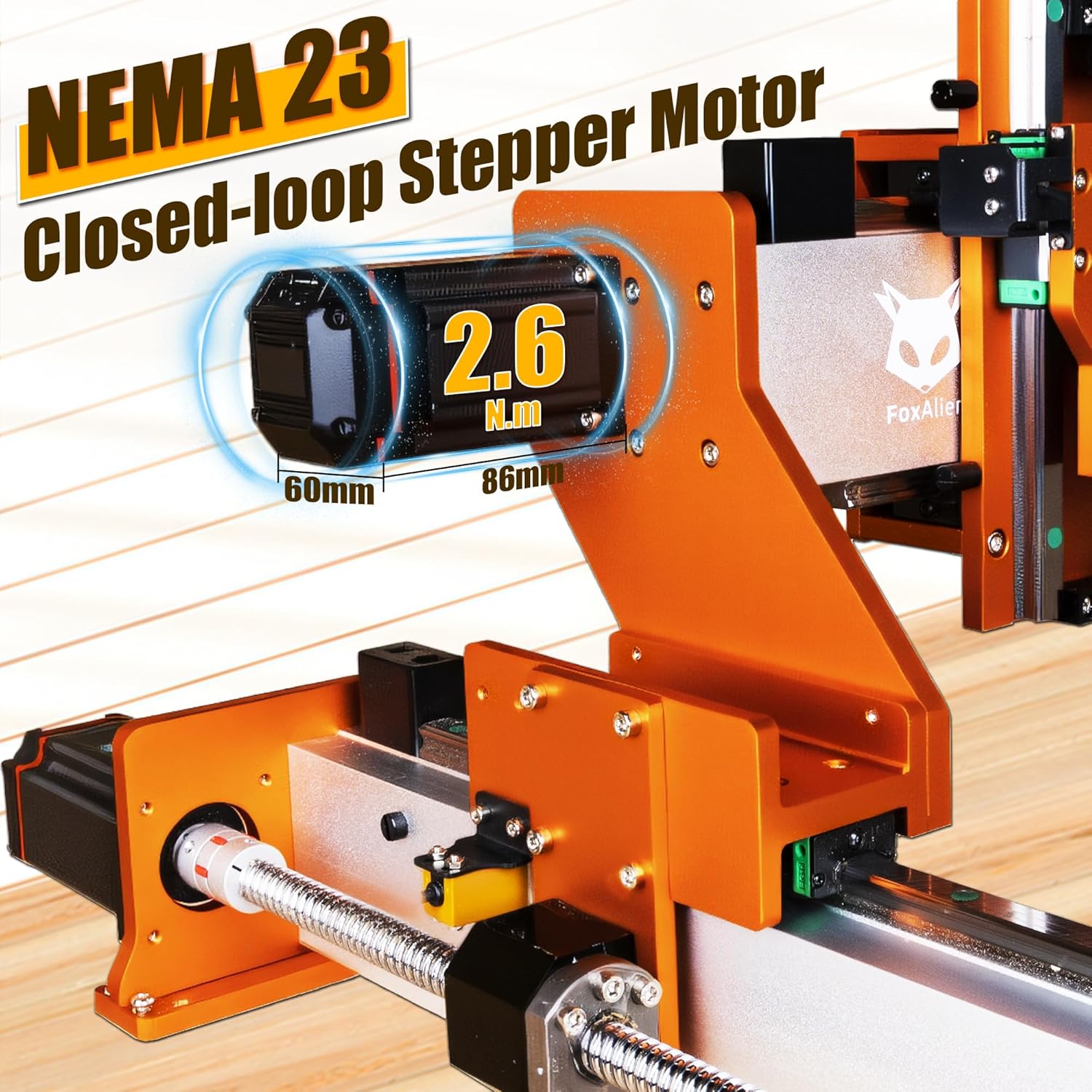

• Closed-loop stepper motors (2.6 Nm): They hold position even under heavy load. I intentionally stalled the spindle on a deep pass in oak — the machine stopped, flagged a position error, but did not lose steps. That is the benefit of closed-loop: no missed steps, no ruined part.
• 16mm ball screws on XY, 12mm on Z: Very low backlash — measured at 0.0015 inches on X, 0.002 on Y after break-in. This makes a visible difference in surface finish on circles and arcs compared to leadscrew machines.

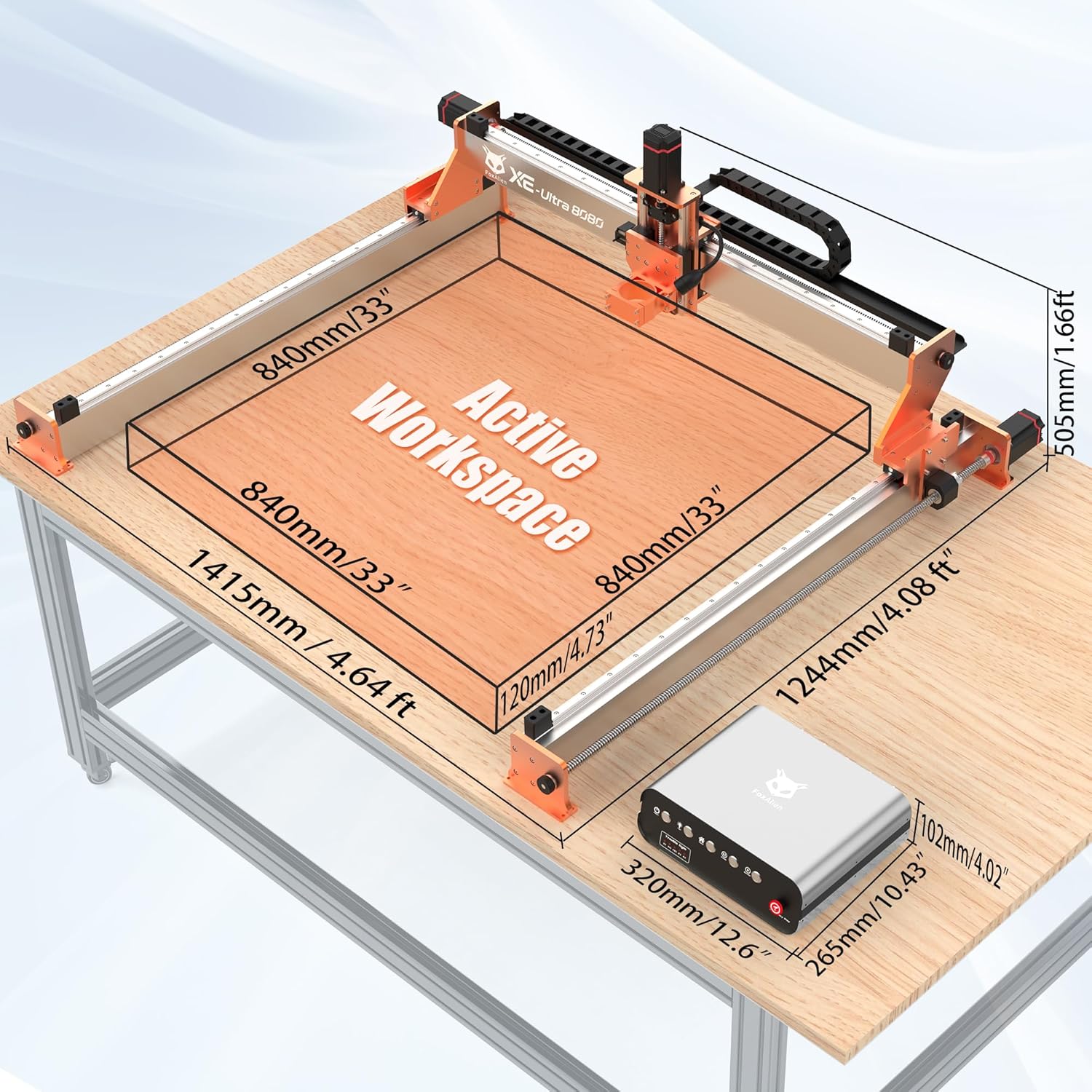

• 33×33 inch work area: I could fit full 24×24 plywood sheets without tiling. That alone justified the price for my sign projects.
• Inductive limit switches: No physical collision, no adjustment needed. They trigger instantly and are unaffected by dust. One similar machine I tried had mechanical switches that shifted over time; this is better.
• Aluminum frame construction: The 46x80mm extrusions are thick and well-bolted. No vibrations at moderate speeds.

Features That Were Overstated

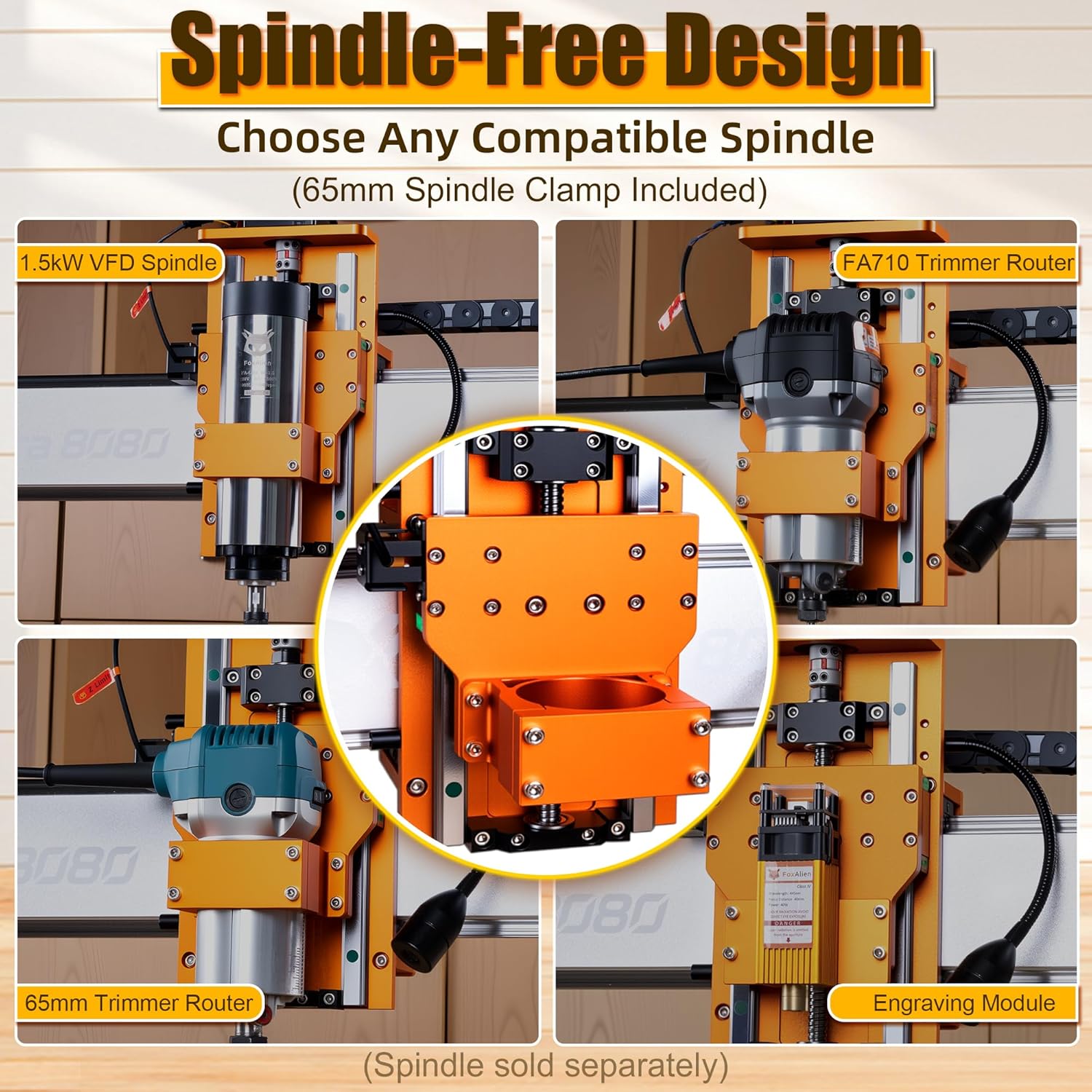

• Open spindle ecosystem: It is true that you can swap spindles, but the mounting plate has limited adjustment slots. I could not perfectly align my trim router without shimming. The 65mm clamp works, but it is not quick-change.
• 32-bit smart control box: The diagnostic LEDs help a little, but the software is still Grbl-based. The “smart” aspect is just basic error reporting. The reserved 4th axis port is not yet functional, despite being “coming soon” since launch.
• High speed up to 5000mm/min: That is true on air cuts and light wood, but in practice with any depth of cut on aluminum you will top out at 1000mm/min or less. The spec is real, but irrelevant for most work.

Specifications Reference

The Honest Scorecard

It scores high on value and build rigidity for the money, but loses points on setup clarity and the missing spindle. For the right buyer, it is a solid 4/5. For someone expecting plug-and-play, it is more like a 3.

How It Stacks Up Against the Real Alternatives

The Case For This Product Over the Alternatives

The FoxAlien offers a 33×33 inch workspace with ball screws and closed-loop motors for $1799, when the Shapeoko 5 Pro costs more than double for a 33×33 area and the Onefinity Elite uses leadscrews. If your priority is maximum cutting area per dollar and you are comfortable doing your own tuning, the FoxAlien is the best value. The closed-loop motors give it an edge for aluminum, where skipped steps can ruin expensive stock. I would choose this again over the Onefinity for that reason alone.

The Case For Choosing Something Else

If you want to cut aluminum every day and hate troubleshooting, the Shapeoko 5 Pro is worth the extra money for its Z-axis rigidity and community support. If you are a complete beginner and want to be up and running in an afternoon, the Onefinity Elite is simpler to assemble and has better documentation — even if you give up a bit of precision on curves. For pure production woodworking, a Carbide 3D Nomad 3 might be easier for smaller parts. But for the price and size, the FoxAlien is hard to beat.

Who This Is Right For, Stated Plainly

The right buyer is someone who already has some CNC experience, maybe owns a smaller machine or has used a friend’s, and is ready to move up to a larger format. They want to cut plywood signs, cabinet parts, and aluminum brackets without paying $4,000. They are okay with spending a weekend on setup, and they understand that a $1799 machine will not have the fit and finish of a $5,000 unit. They value a big work area and ball screw accuracy over turnkey convenience. This buyer will be satisfied because the machine delivers on its core promise: big, rigid, and precise for the price.

The wrong buyer is someone who has never touched a CNC, expects a spindle included, or wants to make money immediately producing parts. They will be frustrated by the learning curve, the need to buy additional items (spindle, spoilboard, coolant system), and the lack of hand-holding support. If that sounds like you, consider a Shapeoko or a Onefinity, or even a smaller machine like the X-Carve with bundled accessories. You will save time even if you spend more money.

Price, Value, and Where to Buy

At $1799, the FoxAlien XE-Ultra 8080 is priced aggressively for what it offers. Comparable ball-screw machines with a 33×33 work area start around $2500 and go up. The value is clear: you are paying for the frame, the linear guides, and the closed-loop motors. The missing spindle is a trade-off that lets FoxAlien hit this price point. For a woodworker who already has a trim router, that is a bargain. For someone who needs a VFD spindle, budget an extra $300–400 and it still comes in under $2200 — cheaper than any competitor with similar specs.

Do not buy from unknown third-party sellers on Amazon. Stick to the authorized listing to ensure warranty validity. FoxAlien offers a one-year warranty on the controller and motors, but the frame is generally not covered for bending or damage. Returns through Amazon are straightforward within 30 days. I have seen the price fluctuate by about $100 over the past few months, so check current stock.

Warranty and After-Sales Support

Standard one-year warranty on electronics and motors. The frame and mechanical parts are not explicitly covered. FoxAlien responds to emails within 48 hours in my experience, but community forums are faster. Some users report receiving replacement parts after sending video evidence of defects. Overall, expect typical Chinese import support — responsive but not generous. Keep your order confirmation handy.

Questions I Get Asked About This Product

Is FoxAlien XE-Ultra 8080 actually worth the price?

Yes, for the work area and ball screw accuracy. If you would have needed a $3000 machine to get this size and precision, then the $1799 price is a steal. But if you only cut small parts or never touch metal, a $600 machine might be enough. The value depends on your material and size needs.

How does it compare to the Shapeoko 5 Pro?

The Shapeoko 5 Pro is more rigid and has better customer support, but it costs more than twice as much. The FoxAlien gives you similar work area and ball screws for less money, but you sacrifice ease of assembly and community polish. For most hobbyists, the FoxAlien is the better value; for a small business making money, the Shapeoko is a safer bet.

How long does setup realistically take?

Plan for a full weekend if you are new. About four hours to mechanically assemble and level, then another two to tune the software and run test cuts. If you already know Grbl, you can cut wood by the end of day one. If this is your first CNC, expect three days of frustrating troubleshooting before your first clean cut.

What do you actually need to buy alongside it?

Essential: a spindle (router or VFD, $100–300), a spoilboard and clamps ($30–60), and dust collection if you cut wood ($50). Optional but recommended: a coolant mist system for aluminum ($50), a longer USB cable, and better limit switch wiring. The FoxAlien XE-Ultra 8080 review honest opinion is that you should budget at least $200 extra to get it running effectively.

Has it had any reliability issues over time?

After about 20 hours of use, I needed to re-grease the Z-axis ball screw. The DB25 cable is a weak point — consider replacing it with a flexible one early. The controller box runs warm but has not failed. No motor or driver issues. Overall, it seems reliable if you perform basic maintenance.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Avoid eBay or Alibaba listings from unknown sellers; warranty will be difficult to enforce.

Can it handle carbon fiber reliably?

Yes, with a diamond-coated end mill and proper dust extraction. I cut 1/8 inch carbon fiber plate with two passes and got clean edges. The closed-loop motors are a plus here because carbon dust can cause skipped steps on open-loop systems. Use a very fine chip load and avoid dwell. The machine is happy with it.

How loud is it?

With the 1.5kW VFD spindle, it measures about 70 dBA at 3 feet while cutting wood — louder than a conversation but tolerable. The router spindle adds another 5 dBA. The control box fan is annoyingly audible at all times, about 45 dBA. Ear protection is recommended for extended use.

My Actual Take, After All of It

What Tipped It For Me

Two things. First, the closed-loop motors gave me confidence to push the machine harder without fear of ruining a part. Second, the ball screw accuracy made a visible difference on a large contour cut that would have been impossible on my old machine. Those two features alone justify the upgrade. The lack of spindle and thin manual are annoyances, but they did not stop me from getting good work done within a week.

The Honest Verdict

The FoxAlien XE-Ultra 8080 is a solid mid-range machine that delivers on its big work area and precision motion. It is not plug-and-play, but if you are willing to put in the setup time, it punches above its price class. I would buy it again if I were in the same position: needing a large-format CNC with ball screws and closed-loop motors for under $2000. It is a FoxAlien XE-Ultra 8080 review verdict of: recommended for experienced hobbyists; proceed with caution if you are a beginner.

If You Have Used It, Tell Me What You Found

I spent weeks testing this machine, but your experience might differ — especially with different materials or a different spindle. Drop a comment below if you own one. Let me know what worked for you and what did not. And if you are ready to buy, check the is FoxAlien XE-Ultra 8080 worth buying price here.
