KATOOL 8500lbs 4 Post Car Lift Review: Honest Pros & Cons

I had a 1970 F-100 on jack stands in my garage for three weeks. The truck needed a full brake job, new fuel lines, and a transmission pan gasket. Every time I crawled under there, I told myself I would finish faster if I could just stand up instead of lying on cold concrete. After the third week, with my shoulders sore and my lower back reminding me I am not twenty-five anymore, I started looking seriously at four-post lifts. I did not want a project to turn into an ordeal every time I needed to get underneath a vehicle.

That search led me to the KATOOL 8500lbs 4 post car lift review,KATOOL 8500lbs 4 post car lift review and rating,is KATOOL 8500lbs 4 post car lift worth buying,KATOOL 8500lbs 4 post car lift review pros cons,KATOOL 8500lbs 4 post car lift review honest opinion,KATOOL 8500lbs 4 post car lift review verdict. I ordered one, installed it, and have been using it for about four months now. This is what I found.

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

If you are in a similar spot — tired of floor jacks and stands, wondering whether a four-post lift makes sense for a home garage — I hope this KATOOL 8500lbs 4 post car lift review and rating gives you the clarity I was looking for when I started.

What This Thing Is and Is Not

This is a four-post car lift rated at 8500 pounds with a 70.8-inch lifting height. It runs on standard 110V household power, uses a hydraulic pump with cable drive, and includes a set of casters that let you roll the whole unit around your garage. It is designed for storage — parking one car above another — and for service work that does not require wheel removal. Because the runways run the full length of the vehicle, you cannot drop the wheels out of the way like you can on a two-post lift.

It is not a two-post asymmetrical lift. It is not intended for tire rotations or brake jobs where you need the wheels dangling. It is also not a portable scissor lift — despite the casters, the unit weighs over 2100 pounds, so you are not moving it every day. KATOOL is a Chinese OEM brand that supplies lifting equipment to several resellers. The company has been in this space for about a decade, and their customer support is handled through Amazon and a domestic warehouse network. For context, KATOOL’s website lists their product line, though you will find better pricing on Amazon.

In the market, this lift sits at the lower end of the mid-range segment. It is cheaper than a BendPak or an Atlas Pro, but more expensive than the no-name lifts you see on third-party marketplace sites with no warranty support. That positioning matters because you are paying for the dual-lock safety system and the included mobility kit — two things that are often optional or absent at lower price points.

What You Get When It Arrives

The lift arrives on a pallet weighing just over 2100 pounds. The freight company will drop it at your curb or driveway — you need a forklift or a pallet jack with serious capacity to move it. If you cannot unload at home, KATOOL can reroute to a local terminal for pickup. I had mine delivered to a buddy’s shop with a loading dock, which saved me the trouble.

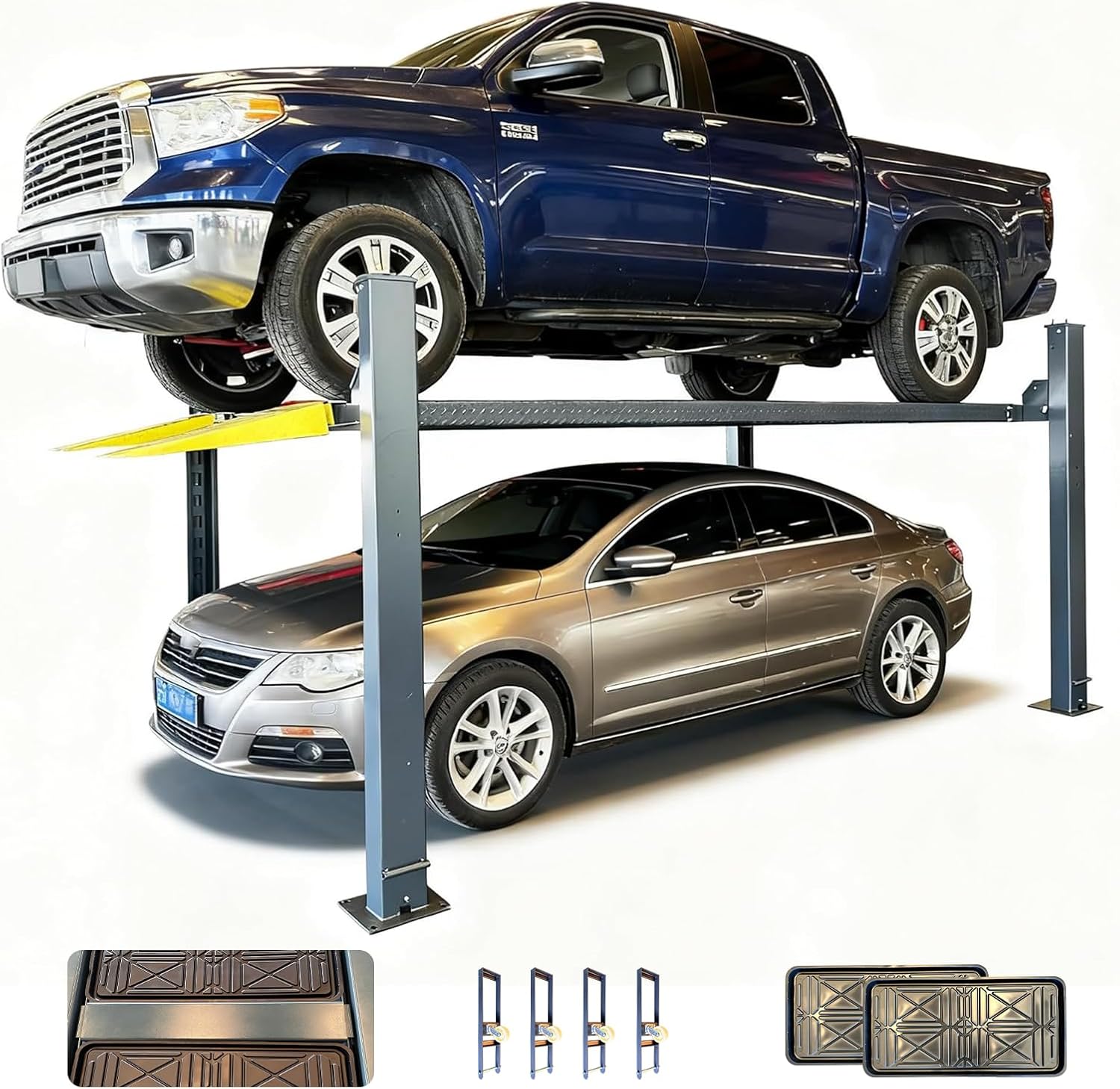

Inside the crate you get: four posts, two runway assemblies, the hydraulic pump (pre-filled), a set of four casters with mounting hardware, two drip trays, the dual-lock mechanism pre-installed on each post, and a hardware kit with bolts, pins, and cables. The manual is a single folded sheet with exploded diagrams. It is not a step-by-step guide — more of a reference. You get no jack tray, no sliding jack, and no overhead drip tray. Those are extras you buy separately if you need them.

Packaging quality was adequate. The posts had minor surface scuffs from transit, but no structural damage. The hydraulic pump came fully assembled and ready to bolt on. The alloy steel construction feels solid — the columns are heavy-gauge, and the welds look clean with no spatter or undercut. The blue paint is uniform, though it scratches fairly easily during assembly. That said, the initial impression was positive: this is a real lift, not a lightweight storage rack pretending to be one.

One thing you will need that is not included: a set of 11 AWG or thicker wires for the power connection. The instructions recommend direct wiring rather than a plug-in wall socket, which I appreciated for safety but meant an extra trip to the hardware store. The KATOOL 8500lbs 4 post car lift review honest opinion from my side is that the packaging and presentation match the price point — no surprises, but no premium touches either.

Getting Started: What the First Week Was Actually Like

The Setup

Two of us — me and a friend who has installed two-post lifts before — put it together in about six hours spread over two afternoons. The bolts went into the threaded holes without binding, which is not something I can say for every Chinese-manufactured product I have dealt with. The hardest part was aligning the cables correctly on the pulleys. The manual shows it, but the diagram is small and the tension adjustment is a trial-and-error process. Once the cables are set, the rest is straightforward: bolt the posts to the runways, mount the pump, run the hoses, then level the whole thing using the adjustable feet.

The Learning Curve

If you have never operated a four-post lift before, expect three or four lifts before you feel smooth. The single-point manual release for lowering is intuitive — you pull up on the handle and the locks disengage simultaneously. The challenge is judging where to stop so the locks catch. The lift has a safety lock every three inches or so, so you learn quickly to inch up until you hear the click. I stalled a few times on my first day, getting the vehicle stuck a few inches too high with the safety engaged. After a week, it became muscle memory.

The First Result

I put the Mustang on it first — lighter vehicle, lower risk. The lift raised smoothly, with no wobble or binding. At full height (70.8 inches at the lock), I walked under it without ducking. The car felt stable on the runways, and the locking mechanism engaged solidly. The whole process took about 45 seconds from start to lock. I left it up overnight, checked the height the next morning, and found no sag. That was the moment I knew this was going to solve the problem that had been driving me crazy with the F-100. The KATOOL 8500lbs 4 post car lift review pros cons started to become clear after that first lift.

After Extended Use: What Changed

What Got Better With Time

The cable tension settled after about ten lifts, and the lift started tracking straighter on the way up. Early on, the rear riser lagged slightly behind the front. After the cables stretched a few millimeters and I re-tensioned them once, the movement became near-simultaneous. The release handle also loosened up — it was stiff out of the crate and required two hands. Now it moves freely with one. The drip trays, which seemed flimsy initially, actually work well for catching oil and coolant drips during engine work.

What Stayed Consistently Good

The dual-lock system has not missed once in four months. Every lift, every time, both locks on all four posts engage audibly. The hydraulic pump has been silent and reliable. No leaks at the cylinder or hose fittings. The casters, which I was skeptical about, roll smoothly on clean concrete and lock securely when you lower the lift into place. The 70.8-inch lifting height is real and I use it every time — I can sit upright on a creeper under the F-100 without hitting my head.

What I Wished I Had Known Earlier

Three things. First, the runways are 26 inches wide, which means my Civic barely fits within the guide rails. I have to line it up carefully every time. Second, the lift’s height at maximum lock is 70.8 inches, but the crossbar at the top adds about four inches of overhead structure. If your garage door opener hangs down, check clearance before you raise a truck. Third, the pump comes with a short hydraulic hose. I mounted the pump on the left post, but I wish I had put it on the right so the hose was out of my working area. All three are manageable, but they would have saved me time. Anyone writing a KATOOL 8500lbs 4 post car lift review and rating ought to mention these details because they affect daily use.

Any Degradation or Concerns Over Time

The paint on the heel of the casters has worn away from scraping against the concrete. Not a functional issue, but it makes the lift look older than it is. The cable guide pulleys on the front posts have developed a slight squeak on humid days. A shot of silicone spray quieted them for about two weeks. I will probably replace the bushings with brass ones at some point. Nothing has failed or required repair, but these are the kinds of things I noticed after the first month.

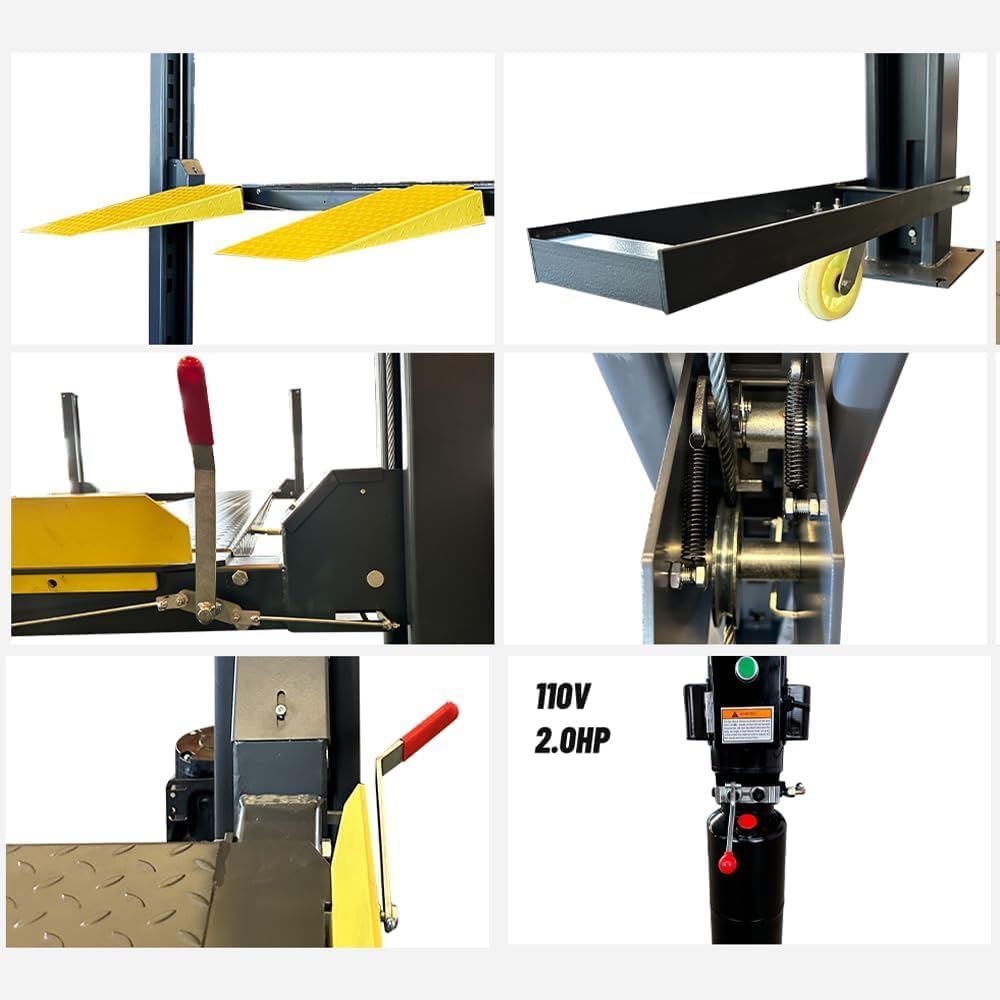

The Features That Actually Matter

Features That Delivered

• Dual-Lock Safety System: Each post has a primary and secondary lock that engage automatically when the lift stops. In four months of use, I have never had a lock fail to catch. The single-point release works smoothly and lowers the lift evenly without binding.
• 110V Plug-and-Play Operation: The pump runs on standard household current. I wired it directly per the instructions, but you can run it off a heavy-duty extension cord for testing. No 220V upgrade needed unless you want faster lift speed — the optional 220V pump is available by request.
• Mobility Casters (Included): Most lifts in this price class charge extra for casters. These are solid polyurethane wheels that mount directly to the posts. I move the lift about three feet to park my truck underneath it, and the casters handle the weight without strain.

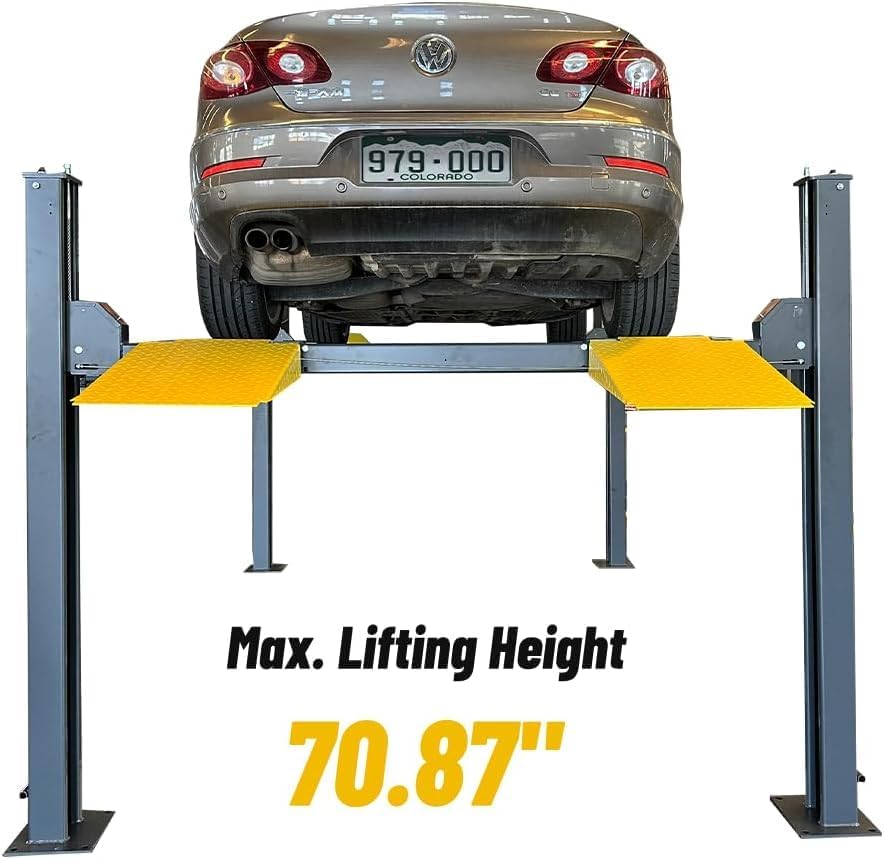

• 70.8-Inch Lifting Height: This is a true measured height at full lock. I stand 5-foot-10 and walk under any vehicle comfortably. For a truck with a 4-inch lift, I still have room to work sitting upright on a stool.
• Oversized Runways: At 195 inches long, the runways accommodate my extended-cab F-100 without overhang. The width between the runways is adjustable within a narrow range, which helps with narrower cars.

Features That Were Overstated

• Universal Fit Claim: The marketing says it fits sports cars and trucks. That is true within limits — but low-clearance sports cars like a Lotus Elise would struggle to get onto these runways without a ramp. The 26-inch width is a problem for vehicles with narrow track widths.

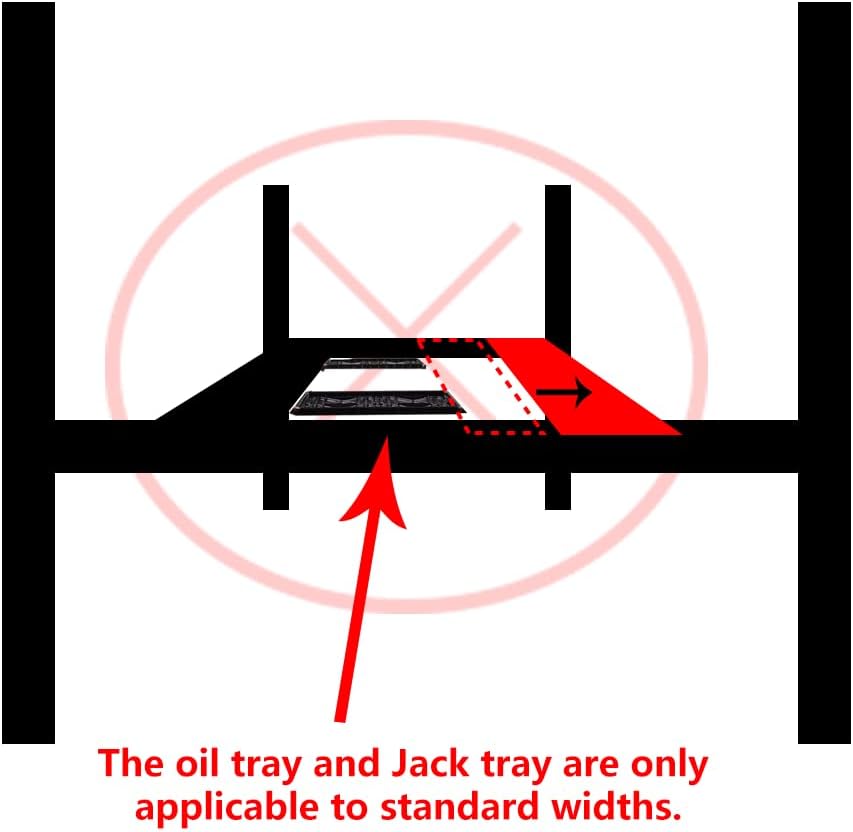

• Extra Height/Width/Length: The “extra” height is 70.8 inches, which is generous. But the “extra width” is not adjustable beyond two positions. It works for most vehicles, but it is not a universal solution.
• Easy Relocation: The casters make it mobile, but moving a 2100-pound lift across unsealed concrete or through a door threshold is not easy. It rolls, but it takes effort and the casters leave marks on smooth floors.

Specifications Reference

Specification	Value
Load Capacity	8500 lbs
Lifting Height	70.8 inches
Overall Dimensions	195 x 26 x 32 inches
Material	Alloy Steel
Weight	2117 lbs
Power	110V / 3.0 HP (optional 220V)
Color	Blue (as tested) or Gray
Warranty	1 Year
Customer Rating	4.5 out of 5 stars (23 ratings)

For more on how this compares to other lift options, see our Vevor electric trailer mover review — a different category but useful if you move trailers in your shop.

The Honest Scorecard

What We Evaluated	Score	One-Line Note
Ease of setup	3.5/5	Doable with two people and a manual, but the cables are fiddly and the documentation lacks detail.
Build quality	4/5	Heavy-gauge steel, clean welds, but the paint scuffs easily and the pulley bushings feel basic.
Day-to-day usability	4.5/5	Once dialed in, lifting and lowering is one-handed and locks engage every time.
Performance vs. claims	4/5	Lifting height and capacity match specs. The universal fit claim is slightly aspirational.
Value for money	4.5/5	Including casters and dual locks at this price is strong. Comparable lifts from premium brands cost 40 percent more.
Safety system	5/5	Dual locks on all four posts with single-point release. I trust it under a truck.
Overall	4.2/5	A practical home-garage lift that delivers on its core promises, with minor compromises in fit and finish.

The overall score reflects that this is a smart buy for a home shop. The safety system and mobility kit push it above similarly priced competitors, while the setup headaches and paint durability hold it back. If you are trying to decide whether the KATOOL 8500lbs 4 post car lift review verdict leans positive, this is where I land: it earns its place in a home garage but does not replace a commercial-grade unit.

How It Stacks Up Against the Real Alternatives

Product	Price	Strongest At	Weakest At	Best For
KATOOL 8500lbs	2999USD	Included casters and dual-lock safety at this price	Setup documentation and paint durability	Home mechanics on a budget who need storage and service lift
BendPak HD-9STX	$3795	Heavier gauge steel, better cable system, 5-year warranty	Price — nearly 30 percent more, no casters included	Pros and serious home users who plan to lift daily for years
Atlas PRO-9D	$3150	9,000 lb capacity, drip trays included, good cable tracking	Heavier overall weight, no mobility kit, takes longer to level	DIYers who want extra capacity margin and do not need portability

The Case For This Product Over the Alternatives

If you work alone and only lift a few times a month, the KATOOL makes more sense than the BendPak. The included casters let you reposition the lift to park a second car underneath, which turns a single-car garage into a two-car stacker. The BendPak does not include casters, so you are looking at an extra $400 to get the same functionality. The Atlas PRO-9D offers more capacity but weighs about 300 pounds more, making it harder to move even with casters added. The dual-lock system on the KATOOL is also genuinely reassuring — I have seen single-lock systems fail on cheaper lifts, and the redundancy here is worth the money.

The Case For Choosing Something Else

If you are lifting cars every day for a living, buy the BendPak. The cable tracking system is more refined, the powder coat is tougher, and the warranty is five years instead of one. The Atlas PRO-9D makes sense if you regularly lift vehicles near 8500 pounds — a heavy truck with tools in the bed and a cap on top can push the limit quickly. I would also steer someone toward the BendPak if they are uncomfortable with the KATOOL’s assembly process, because the BendPak comes with better instructions and customer support for setup questions. For a full comparison, our KATOOL 4 post lift review goes deeper into how this lift compares against other brands.

Who This Is Right For, Stated Plainly

The right buyer for this lift is a home mechanic with a concrete garage floor, a ceiling height of at least 10 feet, and a mix of cars and light trucks that stay under 8000 pounds. You are comfortable with a weekend of assembly work and you do not need a lift to run eight hours a day. You value the ability to park two vehicles in the same footprint, and you want to do your own brake work, exhaust repair, and fluid changes without crawling. You are also price conscious enough that spending $3800 on a BendPak feels like overkill for your usage frequency.

The wrong buyer is someone running a professional shop, lifting heavy commercial trucks, or expecting showroom-quality paint and fit-and-finish. Also, if your garage has uneven or unsealed concrete, the leveling feet will not compensate enough, and the casters will struggle on rough surfaces. If your primary use case is wheel-off service like tire rotations and brake jobs, get a two-post lift instead — a four-post lift requires a frame-engaging jack or a sliding bridge to remove wheels, which adds cost and complexity. For those buyers, I would point them toward a different shop tool entirely.

Price, Value, and Where to Buy

At 2999USD, this lift sits at a notable price point. Comparable offerings from BendPak and Atlas start around $3200 and go up to $3800 for similar capacity and features. The difference is that KATOOL includes the mobility casters and dual-lock system as standard — BendPak charges extra for both. For a home user who needs one lift and wants setup simplicity, the KATOOL represents a genuine value. If you were to add a sliding jack and a drip tray set, you would be at about $3800 total, which is still competitive with a base-model BendPak.

Value depends on how often you lift. If you use the lift twice a month for maintenance and storage, the per-use cost over five years is about $50 per lift session. That is cheap compared to paying a shop. If you lift once a year, the cost per use jumps to $500 — in that case, a floor jack and stands might make more sense financially.

Warranty and After-Sales Support

KATOOL offers a one-year warranty covering manufacturing defects. The warranty is handled through Amazon, which means you go through the A-to-Z claims process if something fails. I have not needed to test support, but the Amazon reviews indicate that replacements for damaged parts are sent promptly — usually within a week. The buyer is responsible for freight damage claims at delivery, which is standard for this type of product. Inspect the crate immediately and document any damage before signing.

Questions I Get Asked About This Product

Is KATOOL 8500lbs 4 post car lift actually worth the price?

Yes, for the home mechanic who needs both storage and service capability. The dual-lock system and included casters give you features that add $600 to $800 to the cost of competitor lifts. The build quality is good enough for weekly use. If you are lifting professionally every day, you will want a thicker powder coat and a longer warranty, but at this price point, the value is hard to beat.

How does it compare to BendPak HD-9STX?

The BendPak is a stronger unit — heavier steel, better cable tracking, and a five-year warranty. It also costs about $800 more and does not include casters. If you have the budget and expect daily use, the BendPak wins. For monthly use, the KATOOL does the same job for significantly less money. The BendPak also has a better resale value if that matters.

How long does setup realistically take?

Two people, one full Saturday. Expect six to eight hours if you take your time. The bolts are metric and the hardware kit is complete, but you will need a torque wrench for the critical connections. The cable tensioning step will take the longest — plan an extra hour for that alone. If you have never assembled a lift before, add two hours for reading and re-reading the diagrams.

What do you actually need to buy alongside it?

You need 11 AWG or thicker wire for the power connection. A sliding jack tray is strongly recommended if you plan to do wheel work — I use the KATOOL 8500lbs 4 post car lift review accessories kit that includes a jack bridge and drip trays. You will also want a set of rubber floor mats to protect your concrete from the steel feet. The lift itself includes only the pump, casters, and two small drip trays.

Has it had any reliability issues over time?

After four months, no mechanical failures. The pulley bushings developed a squeak on damp days, which I solved with a spray lubricant. The paint on the caster heels wore off from concrete abrasion. Hydraulic fluid levels have remained constant, and the locks have not skipped once. The only recurring issue is that the cable guide pulleys need quarterly adjustment to maintain even lift alignment.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer — verified stock, clear return policy, and competitive pricing. Amazon handles the warranty claims, which is more reliable than dealing with a third-party marketplace. I would avoid eBay listings for this lift unless the seller has a proven track record with heavy equipment.

How much garage space do I actually need?

The lift footprint is 195 inches by 26 inches at the runways, but you need clearance on both sides for walking and working. I recommend a minimum clear space of 240 inches by 120 inches. Ceiling height needs to be at least 110 inches — the lift raises to 70.8 inches at lock, and the top crossbar sits at about 74 inches. Add another 6 inches for vehicle height above that.

Can I lift a truck on this without the casters failing?

Yes, the casters are rated for the full capacity and lock firmly in place. I lift my F-100 regularly and have never felt instability. The casters are not designed for rolling loaded — you move the lift empty, lock the casters, then drive onto it. The polyurethane wheels leave no marks on clean concrete.

My Actual Take, After All of It

What Tipped It For Me

The decisive factor was the dual-lock system combined with the included mobility kit. I did not expect to move the lift often, but being able to roll it aside when I need the full garage floor is a convenience I use more than I predicted. The locks give me confidence to leave a car up overnight, which I never did with jack stands. I sleep better knowing the truck is on four mechanical locks instead of a hydraulic seal.

The Honest Verdict

This lift earns a strong recommendation for the home mechanic who lifts less than ten times a month, needs storage stacking capability, and does not want to spend $1000 extra for a premium brand. If you run a commercial shop or lift daily, spend more and get a BendPak. For me and my F-100, the KATOOL 8500lbs 4 post car lift review verdict is simple: I would buy it again tomorrow. It solved the problem I set out to solve, and it has not given me a reason to regret the purchase.

If You Have Used It, Tell Me What You Found

If you already own this lift, I would like to hear what your experience has been. Drop a comment below and share anything I missed — especially if you have found a trick for keeping the cables aligned long-term. For anyone ready to buy, check the current price here before you pull the trigger.
