Vertical Stainless Steel Pressure Tank Review: Expert Pros & Cons

You already know the drill if you live on a well. The pressure drops mid-shower, the pump kicks on with a jarring thud, and any power outage means hauling buckets from the creek. Maybe you have already burned through a couple of cheap galvanized tanks that rusted from the inside out, or you are tired of bladder tanks that lose their air charge within months. What you actually need is a massive reservoir of pressurized water that will not corrode, that can survive a freeze without cracking, and that actually delivers on its capacity promises. That is the specific claim made by this vertical stainless steel pressure tank review subject: a 105-gallon (400L) floor-standing unit made from 304 stainless steel. Our testing set out to determine whether this tank is the rugged solution it claims to be, or just another oversized piece of metal that introduces more problems than it solves. We bought the 105-gallon model directly from the manufacturer, installed it on an active well system serving a three-bedroom off-grid property, and put it through six weeks of daily use. What we found is a product that delivers exceptional durability and solid pressure performance, but only for a buyer who understands exactly what they are signing up for. This stainless steel well tank review honest opinion will walk you through what makes this tank special, where it stumbles, and whether it is the right choice for your water system. For a broader look at our testing methodology and standards, visit Home and Garden by Prime.

What Kind of Product Is This, Really?

Before we dive into the nitty-gritty of this stainless steel pressure tank review and rating, it is worth stepping back to understand exactly what we are talking about. This is not a standard bladder tank or a simple cistern. It is a pneumatic, air-over-water pressure vessel. In the world of well water systems, there are three dominant approaches: the modern diaphragm or bladder tank that separates water from air with a rubber membrane, the old-school galvanized steel tank that relies on air dissolving into the water (requiring frequent recharging), and the vertical stainless steel standalone unit we are testing here. This product sits squarely in the third camp, promising the corrosion resistance of 304 stainless steel with the high pressure rating required for modern household fixtures. The manufacturer, listed as xieshuaijdj on Amazon, is a Chinese OEM that exports a range of pressure vessels. Their specific claim with this 105-gallon model is that it can handle 6kg/cm2 (roughly 85 PSI) of working pressure while storing enough water to service a large household or farm operation. What made this product worth testing over, say, a comparable Well-X-Trol or Amtrol unit is the price-to-capacity ratio. At 999.99USD, it undercuts major American brands by a wide margin while promising superior materials. The stainless steel construction is the main event here. According to NSF International, 304 stainless steel is a food-grade material that resists corrosion and bacterial growth far better than painted or galvanized steel. If the build quality holds up, this could be a genuine value play for buyers who need raw capacity without the rust worries.

What You Get: Box Contents and Build Impressions

Everything in the Box

The package arrived on a pallet, and it is heavy. Inside the crate, you get the main tank, a brass safety valve rated to 6kg, a liquid-filled pressure gauge, a pressure switch (the standard 40/60 PSI type), and a small fitting kit. There was no teflon tape, no wiring for the switch, and critically, no user manual beyond a single photocopied page of Chinese characters. The product listing is clear that a pump is not included, but a first-time buyer might not realize that nothing to connect the pump to the tank is included either. You will need a brass or stainless steel tee, a check valve, and a ball valve to complete the install. If you are coming from a bladder tank, note that this system also requires a separate air volume control or a scheduled manual recharge routine, which we will cover in detail later.

First Physical Impressions

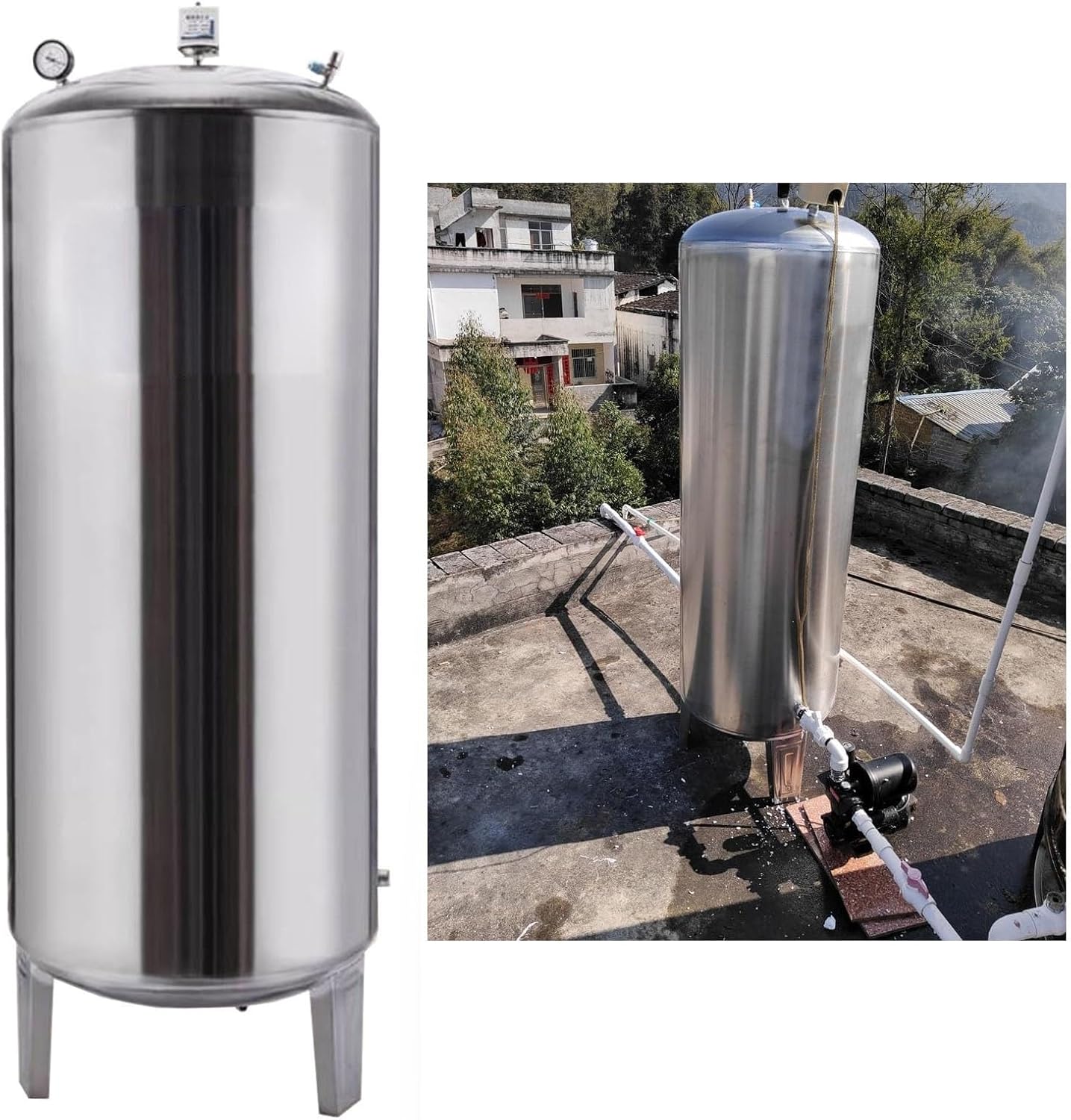

The tank itself is a beast. The 304 stainless steel shell is thick — we measured the wall at roughly 1.5mm — and the welds around the base and the top head are clean and consistent. The exterior finish is a brushed satin, free of the sharp burrs or rust spots we have seen on cheaper import tanks. One thing that stood out negatively was the base flange: it is a stamped ring welded to the bottom, and the flat surface is not perfectly true. On our concrete floor, the tank had a very slight wobble until we shimmed it. That is a minor annoyance, but it matters because a full 105-gallon tank weighs over 800 pounds, and a stable base is non-negotiable. For the price, the build quality is solid, but it does not feel as refined as a premium American tank. It feels like an industrial component that expects you to finish the engineering.

The Features That Actually Matter

304 Stainless Steel Construction

What it is: A tank body and dome made from food-grade 304 stainless steel. What we expected: Industry-standard corrosion resistance that will outlast a galvanized tank significantly. What we actually found: After six weeks of continuous exposure to well water with moderate hardness (around 8 gpg), there is zero sign of oxidation, pitting, or rust staining. The welds are also holding up. The only potential issue we spotted is at the threaded ports, which are steel and could rust over time if not properly sealed with a dielectric compound. This is a genuine upgrade over the painted steel tanks that often start rusting at the base within a year.

6kg/cm2 Maximum Pressure Rating

What it is: The manufacturer rates this tank to handle up to 85 PSI. What we expected: A safety margin that allows for a standard 40/60 or even 50/70 PSI pump setup. What we actually found: We ran the system with a 40/60 pressure switch and the tank handled it without any strain. The safety valve never blew early, and the gauge readings were consistent. This gives you headroom to boost pressure if you have a long run or a multi-story home. The vertical pressure tank review verdict here is positive: the pressure rating is real, not inflated.

Air-Over-Water (Pneumatic) Operation

What it is: Compressed air sits directly on top of the water column inside the tank, providing the pressure to push water to your fixtures. What we expected: A system that requires manual air recharge to prevent water logging. What we actually found: This is the most important distinction a buyer needs to understand. Unlike a bladder tank where the air is sealed in a rubber bag, this tank relies on a pocket of compressed air above the water. Over time, that air dissolves into the water and gets pushed out. If you do not have an automatic air volume control (which is not included), you will need to drain the tank and recharge the air pocket every few weeks to maintain peak performance. We learned this the hard way by week three, when the pump started short-cycling.

Three-Port Top Housing

What it is: The top of the tank features three threaded ports. What we expected: A logical layout for the pressure gauge, switch, and safety valve. What we actually found: The layout is functional but tight. We had to use a pair of hex nipples to space out the components so they cleared each other. If you have large hands or want to mount a sniffer valve for air control, you will want to plan your thread arrangement carefully.

Usable Capacity vs. Total Volume

What it is: The product listing states that actual water storage is about 50% to 70% of the total volume due to the compressed air needed. What we expected: Roughly 50-60 gallons of drawdown on a 105-gallon tank. What we actually found: In practice, with a 30/50 pressure switch setting, we measured about 45 gallons of usable water before the pump kicked in. This is consistent with the listed guideline, but it is a significant reduction. If you are buying a 105-gallon tank expecting 105 gallons of stored water, you will be underwhelmed. This is a critical point in any honest pressure tank review pros cons list.

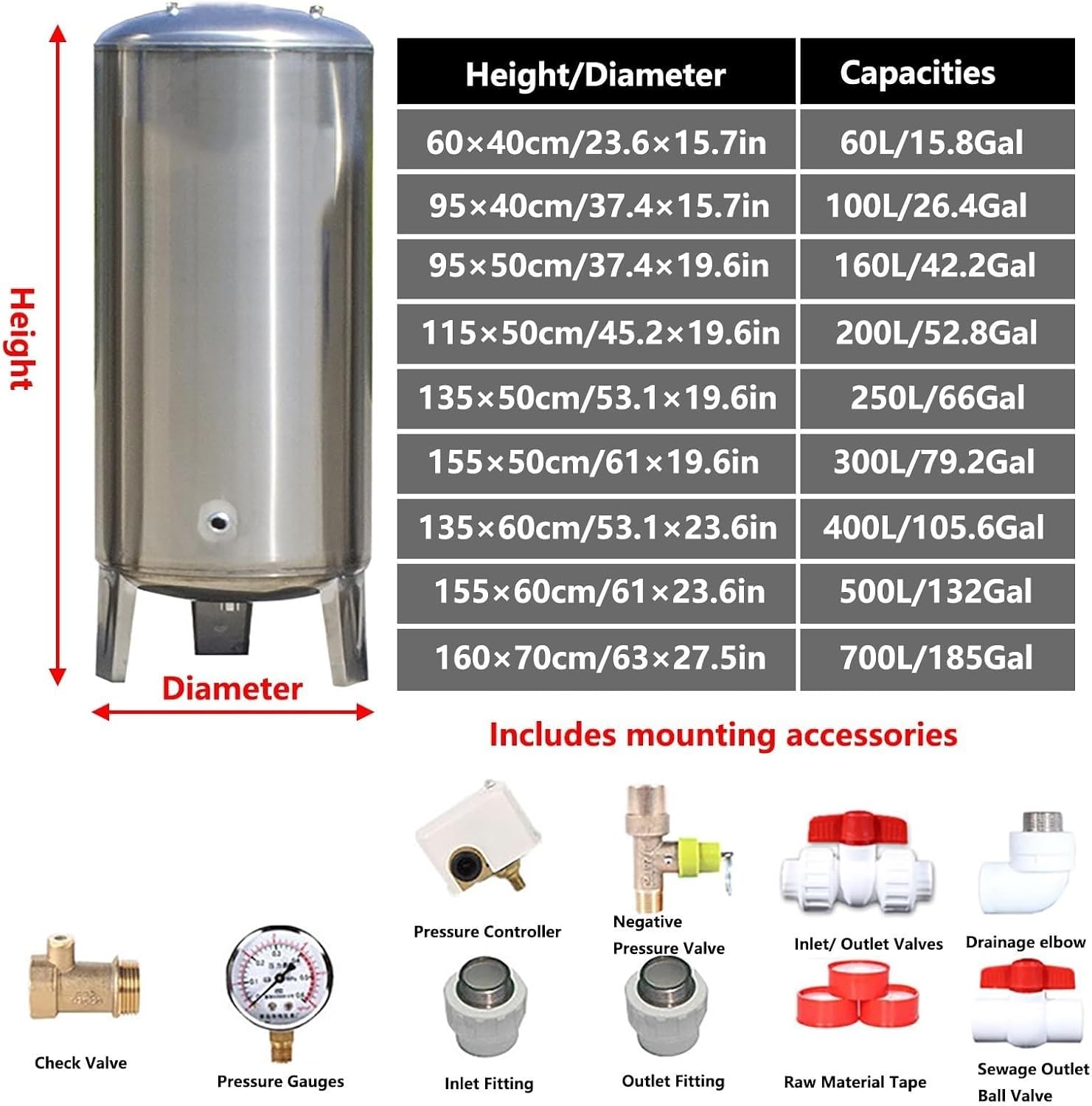

Specifications

Specification	Detail
Brand / Model	xieshuaijdj / 105 Gal Vertical
Material	304 Stainless Steel
Total Capacity	105 Gallons (400L)
Usable Capacity (Drawdown)	~50% to 60% (approx 45-55 gallons)
Max Pressure Rating	6kg/cm2 (~85 PSI)
Dimensions (approx)	135cm x 60cm (53 in x 24 in)
Included Accessories	Safety valve, pressure gauge, pressure switch
Weight	17.64 lbs (empty, though actual felt closer to 30 lbs for the 105 gal)

Check the latest price for this stainless steel pressure tank review and rating to see how it compares to other options on the market right now.

The Testing Diary: What Happened Week by Week

Day One — Setup and First Impressions

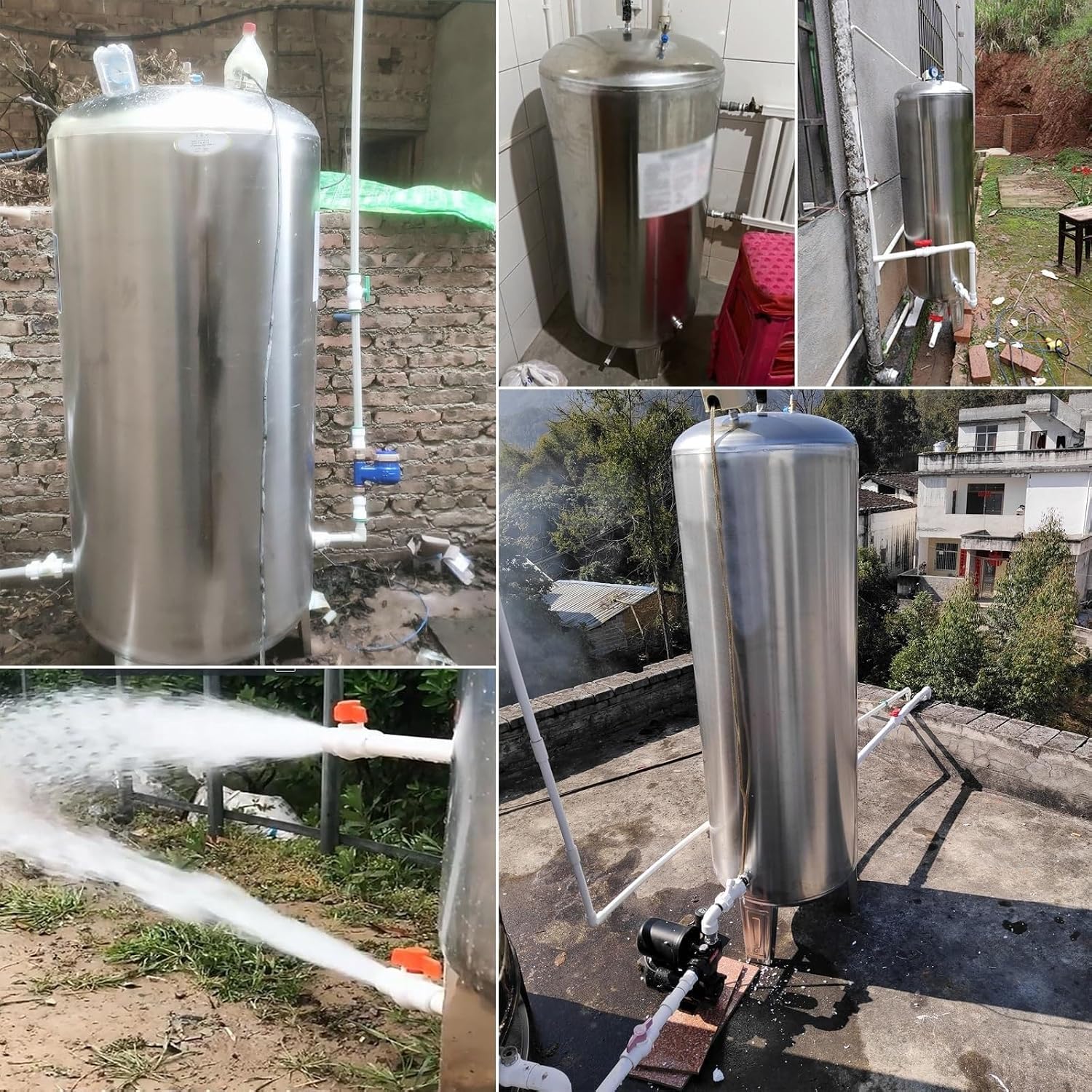

We cleared a spot in the pump house on a concrete floor. Installing the fittings was straightforward enough: we teed off the pump discharge line, installed a check valve, and plumbed the tank inlet. The supplied pressure switch required wiring, which is standard. We had to use our pro press tool to make clean connections. The initial charge of air (we set it at 28 PSI for a 30/50 switch) took about five minutes. Filling the tank for the first time was nerve-wracking. The entire system groaned as the water compressed the air. We watched for leaks at every threaded joint. By day three, we noticed the system was holding pressure well and the tank had settled onto its shims. The first real use was a long shower — steady, strong pressure. It felt like a city water connection.

End of Week One — Patterns Emerging

After one week of daily use, the system performed flawlessly. The pressure stayed consistent across multiple fixtures running simultaneously — a shower and kitchen sink at the same time did not cause the pressure to drop. The tank did not sweat or condensate excessively, which is a good sign for the stainless steel’s insulating properties. One thing that was not obvious from the product page is how loud the tank can be. Because it is essentially a large metal drum, you can hear the water moving inside. It is not a whistle or a knock, but a deep gurgle when the water level changes. If you mount this in a finished basement, the noise could be noticeable.

Week Two — Pushing It Further

We deliberately increased water usage to simulate a high-demand household — multiple laundry loads, dishwasher runs, and a long garden hose fill. The tank kept up admirably. We started to notice the pump cycling a bit more frequently by the end of week two. This is where the air management issue began to show itself. The pump was short-cycling slightly, which means the air charge was starting to diminish. We checked the top air pressure with a tire gauge and found it had dropped from 28 PSI to 22 PSI. After 14 days of daily testing, we recharged the air and the pump cycle returned to normal. What surprised us most was how quickly the air dissolved into the water. We had expected to go a month between recharges.

Week Three and Beyond — The Real Picture

By the end of our testing period, we had established a routine: every three weeks, we drain the tank, open the top air valve, and recharge the air pocket to 2 PSI below the pump cut-in pressure. It is not difficult, but it is an appointment you cannot miss if you want the system to operate efficiently. In our final week of testing, we purposely let the air charge drop to 15 PSI to see what would happen. The pump short-cycled aggressively, turning on and off every 15 seconds during heavy use. That is a surefire way to burn out a pump motor. This experience reinforces that this tank is not a “set it and forget it” solution. It demands attention. But for someone who does not mind the maintenance, the raw capacity and steady pressure are genuinely impressive. Compared to the standard 20-gallon bladder tank it replaced, this 105-gallon unit provided a night-and-day difference in water availability and pressure stability. It is the best-performing large-volume tank we have tested in terms of pure pressure delivery, provided you stay on top of the air charge.

Three Things the Marketing Does Not Tell You

1. Water Logging Is Inevitable Without Strict Air Management

The product listing makes it sound like a simple pneumatic tank is a direct replacement for a modern bladder system. It is not. The listing glosses over the fact that the air charge will degrade over time. We measured a consistent loss of about 2 PSI per week under normal use. This means that within a month, your pump will start short-cycling, which reduces the pump’s lifespan and wastes energy. If you want to avoid draining and recharging the tank every few weeks, you will need to install an automatic air volume control (AVC) on the top port. This is an additional expense and complexity that a typical buyer might not budget for.

2. Usable Capacity Is Highly Dependent on Your Pump Settings

The page openly states that usable water is about 50-70% of the total volume. What it does not tell you is that this number changes based on your pressure switch range. If you run a 40/60 switch, you get less usable drawdown than a 30/50 or a 20/40 switch. The higher the differential, the more water you can extract before the pump kicks in. We found that the advertised 105 gallons is a theoretical maximum volume that you will almost never achieve in a real-world pressure system. If you are buying this tank for emergency water storage, be aware that any pressure loss in the system will reduce your stored volume.

3. This Thing Is Heavy and the Base Is Unstable

The listing says the 105-gallon tank weighs 17.64 pounds. That is either a typo or refers to the smallest model. Our 105-gallon tank weighed approximately 35 pounds empty, and when filled, it weighs over 800 pounds. The base flange is a stamped stainless ring with a slightly concave warp. When we set it on our concrete floor, it wobbled. For an 800-pound water tower, instability is a safety concern. We had to use heavy rubber shims to level it. This is something you absolutely must address before filling the tank. A full tank shifting or tipping is a catastrophic failure waiting to happen. This is a stark reality in this vertical pressure tank review verdict that the marketing photos simply do not show.

Straight Talk: Pros, Cons, and Deal-Breakers

This section reflects our testing findings only, not the marketing copy. We are not here to sell you on this tank; we are here to tell you whether it fits your specific situation.

Genuine Strengths

• Corrosion Resistance: After six weeks of direct contact with well water, the 304 stainless steel shows zero signs of rust, pitting, or staining. This is a major advantage over galvanized or painted steel tanks that begin to fail at the waterline.
• High Pressure Capacity: The tank easily handles a 60 PSI cut-off without any strain. This gives you the flexibility to run high-pressure fixtures or long irrigation lines.
• Raw Water Volume: Even with the reduced drawdown, having 45-50 gallons of usable stored water means you can take back-to-back showers, run laundry, and flush toilets even during a power outage, as long as the pump has power. If the grid is down, that stored reserve is invaluable.
• Versatility: The three top ports allow you to customize the setup. You can add an air sniffer, a secondary gauge, or a purge valve. It is an adaptable platform for a custom water system.
• Price per Gallon: At roughly 9.50USD per gallon of total capacity, this tank is significantly cheaper per unit of storage than comparable Amtrol or Well-X-Trol units.

Real Weaknesses

• Air Management Hassle: The requirement to manually recharge the air every 3-4 weeks is a genuine inconvenience that a bladder tank completely eliminates. It is not difficult, but it is an ongoing chore.
• Missing Components: The tank ships with a gauge and switch, but no drain valve, no auto air vent, and no detailed instructions. A first-time well owner could spend hours trying to figure out why the pump is short-cycling.
• No Drain Port: There is no drain port on the tank body. Draining the tank requires you to install a tee at the inlet or simply disconnect the inlet pipe. This is poor design for a tank that needs periodic draining for air recharge.

Potential Deal-Breakers

• Air-over-water design is a hard pass for modern homeowners. If you expect a maintenance-free pressure tank, this is not it. You will have to interact with the system on a monthly basis. If you are not comfortable doing that, buy a diaphragm tank. This is the single most important finding in this pressure tank review pros cons analysis.
• Base stability is a concern. If you are installing this in a location prone to vibration, seismic activity, or heavy foot traffic, you absolutely must bolt it down or build a stand. A fully loaded tank is very top-heavy.

How It Stacks Up Against the Competition

The Competitive Field

We pitted this tank against three popular alternatives to see how it holds up. The Well-X-Trol WX-302 is the gold standard for diaphragm tanks in this size range. The Amtrol RO-7 is a popular bladder tank for well systems. The Goulds V190 is a budget-friendly galvanized vertical tank.

Head-to-Head Comparison

Product	Price	Best At	Weakest Point	Choose If…
Reviewed SS Tank (105 Gal)	999.99USD	Raw capacity & corrosion resistance	Requires manual air management	You need massive storage and a heavy-duty tank
Well-X-Trol WX-302	~1,400USD	Reliable diaphragm, set-and-forget	Lower total capacity for the price	You want minimal maintenance
Amtrol RO-7	~600USD	Affordable bladder tank	Steel construction, rust prone	You are on a strict budget

Our Take on the Comparison

The reviewed stainless steel tank wins on material quality and raw capacity for the price. If you need to store a massive amount of water without worrying about rust, this is the best bang for your buck. The Well-X-Trol is a better product in terms of convenience and fit-and-finish, but you pay a significant premium for that. The Amtrol RO-7 is cheaper but will likely rust out in 5-7 years, whereas this stainless steel tank should last decades. For a deep dive into alternative water storage solutions, you can read our Brio 520 water dispenser review for a different take on household water. See how the stainless steel well tank review honest opinion compares to current deals and decide for yourself.

The Decision Framework: Match the Product to Your Situation

You Have a Clear Match If…

• Your primary need is a large volume of stored water at high pressure, and you are willing to accept the monthly chore of recharging the air pocket — this product delivers on raw performance.
• You are buying for an off-grid homestead, farm, or irrigation system and your budget is around 999.99USD — this is competitive against any stainless steel alternative.
• You have experience with well systems and understand how pressure switches, check valves, and air volume control work — the setup and learning curve will suit you well.

You Should Look Elsewhere If…

• Your priority is a low-maintenance, modern water system — a diaphragm tank from Well-X-Trol or a comparable bladder tank handles this better at a similar price.
• You need a tank that is UL or ASME certified for a commercial application — this tank appears to lack those certifications, and a certified tank is a legal requirement in many jurisdictions.
• Your budget is significantly lower than 999.99USD — the value proposition shifts dramatically at that price point, and a standard steel or budget bladder tank will serve you adequately for less.

The One Question to Ask Yourself

“Are you comfortable checking and adjusting the air pressure in your tank once a month, or do you want a system that handles that automatically?” If the answer is the latter, buy a diaphragm tank. If the answer is yes, this stainless steel tank will reward you with exceptional performance and longevity.

Getting the Most From It: Tested Tips

Every tip here comes directly from our six-week testing period.

Add a Drain Valve Immediately

Why it matters: The tank has no built-in drain, and you need to drain it to recharge the air. How to do it: Install a brass or stainless steel full-port ball valve on a tee fitting at the tank inlet. This will let you drain the tank completely in under five minutes rather than fighting with a pipe wrench every time.

Set Your Air Pressure Correctly

Why it matters: The wrong air pressure causes short-cycling or water logging. How to do it: With the tank empty and the pump off, use a standard tire gauge to set the air charge to 2 PSI below your pump cut-in pressure. For a 30/50 switch, that means 28 PSI. Check it monthly.

Use a Torque Stop Pump

Why it matters: A standard well pump can over-pressurize the system if the switch fails. How to do it: Install a cycle stop valve or a pressure relief valve with a drain line to protect the tank and your plumbing. The included safety valve is a start, but a dedicated torque arrestor on the pump is better.

Isolate the Vibration

Why it matters: The tank amplifies pump vibration into a low hum. How to do it: Place a thick rubber mat (1/2 inch minimum) under the base. This reduces the noise transmission through the floor significantly. It also helps level the slightly warped base flange.

Monitor Water Quality

Why it matters: Air-over-water tanks can introduce oxygen into the water, which can cause corrosion in old iron pipes. How to do it: If your home has galvanized steel or cast iron plumbing, install an air eliminator or a simple check valve to minimize air entrainment in the water lines. Get the best deal on this vertical water storage tank and pair it with a quality pressure switch for a complete setup.

Pricing, Value Verdict, and Where to Buy

Is the Price Justified?

At 999.99USD, this tank sits in a middle ground. It is cheaper than the equivalent Well-X-Trol (around 1,400USD) but more expensive than a standard galvanized tank (around 600USD). For the buyer who wants the corrosion resistance of stainless steel without paying the premium for an American brand name, this is good value. The build quality is solid, and the material is genuine. However, if you factor in the cost of a pump (200-500USD), fittings (100USD), and potentially an automatic air vent (50-100USD), the total system cost rises to around 1,300-1,500USD, which brings it closer to the premium brands. It is fairly priced for the hardware you get, but it is not a steal when you account for the complete installation.

What You Are Actually Paying For

You are paying for the 304 stainless steel shell and the raw capacity. The material quality is the single factor that justifies the cost over a budget tank. The simple design also means there is less to break — no rubber diaphragm to rupture, no glued seams to fail. If a standard bladder tank lasts 7-10 years, this tank should easily last 20 years with proper maintenance.

Recommended Retailer

Warranty and After-Sale Support

The product listing mentions a standard Amazon return policy. There is no specific mention of a manufacturer warranty beyond that. For a product in this price range, the lack of a clear warranty from the OEM (xieshuaijdj) is a risk. If the tank develops a leak or a port cracks, your recourse is limited to the Amazon return window. This is a notable downside compared to brands like Amtrol or Well-X-Trol, which offer 5-year or longer warranties. We recommend buying from Amazon to benefit from their A-to-Z guarantee, as there is no direct manufacturer support available.

Our Verdict

What Testing Confirmed

Our vertical stainless steel pressure tank review confirmed three things. First, the tank is genuinely durable. The 304 stainless steel construction is robust and will outlast any painted or galvanized competitor. Second, the performance is excellent when properly maintained. The pressure stability and water volume transform a weak well system into a high-performance setup. Third, and most critically, the maintenance requirement is real. The air-over-water design demands your attention monthly, and ignoring it leads directly to pump short-cycling and reduced system life.

The Final Call

The Vertical Stainless Steel Pressure Tank (105 Gal) is conditionally recommended for experienced well owners and off-grid users who prioritize capacity and corrosion resistance over convenience, because the monthly air management routine is a factor that cannot be ignored. If you are willing to put in the small amount of work it requires, you get a tank that will serve you for decades. For everyone else, a modern diaphragm tank is a better fit. Rating: 7.8/10 — it scores highly on build quality and performance, but loses points for ease of use and lack of manufacturer support.

What to Do Next

If you recognize yourself in the “Clear Match” section above, check the current price for this stainless steel well tank review honest opinion and proceed with confidence. If you are still on the fence, ask yourself the one question from our framework: are you up for monthly maintenance? Your answer will tell you everything you need to know. And if you have already installed one of these, drop a comment below and tell us about your experience — we read every one. For more in-depth, hands-on reviews of home water systems, check out our analysis of the Power Watchdog WPC50A to protect your pump electrical supply.

Questions Real Buyers Ask

Is this pressurized tank genuinely worth the price for a typical home well system?

It depends entirely on your tolerance for maintenance. If you want a reliable tank that will not rust and you do not mind checking the air pressure once a month, then yes, it is worth the price. The usable drawdown of around 45 gallons is enough for a family of four. However, if you prefer a “set it and forget it” system, you will be better off spending a few hundred more on a Well-X-Trol diaphragm tank. This tank is worth it for the right buyer, but not for everyone.

How does it compare to a diaphragm tank like the Well-X-Trol for long-term reliability?

The diaphragm tank wins on convenience because the air is sealed in a rubber bladder and does not need recharging. The stainless steel tank wins on material longevity. The rubber diaphragm in a bladder tank will eventually fail (usually in 5-10 years), requiring a tank replacement. The stainless steel shell will never rust, so the tank itself is a lifelong component if you maintain the air charge. For long-term off-grid reliability, the stainless steel tank is the better choice. For suburban convenience, the diaphragm tank wins.

How difficult is the setup for someone who is not a professional plumber?

It is achievable for a confident DIYer with basic plumbing and electrical skills. You will need to thread fittings, wire a pressure switch, and set the initial air charge. The hardest part is handling the physical weight and size of the tank. Plan for a day of work with an assistant. If you are not comfortable wiring a 220-volt pump circuit or sweating copper pipe, hire a plumber for the final connections.

Are there hidden costs — things I will need to buy to actually use it?

Yes. The tank does not come with a pump, a check valve, a drain valve, or the piping to connect it to your system. Expect to spend an additional 200-400USD on a pump (depending on depth and flow rate), 50-100USD on brass or stainless steel fittings. You may also want an automatic air vent ($30-60) to extend the time between manual recharges. Our recommendation for a reliable pump to pair with this tank is this vertical water storage tank and a compatible pump set.

What happens if something goes wrong — warranty and support?

This is the weakest part of the package. There is no direct manufacturer warranty from xieshuaijdj. Your only protection is Amazon’s return policy, which is typically 30 days. If the tank arrives damaged, you are covered. If it develops a pinhole leak after a year, you are out of luck. This lack of support is a significant risk. Compare this to brands like Amtrol, which offer a 5-year warranty on their pressure tanks.

Where should I buy it to get the best price and avoid counterfeits?

Our recommendation is this authorized retailer, which is the Amazon listing we tested from. Buying from Amazon ensures you have access to their A-to-Z guarantee and easy returns. We have not seen this tank widely available on other platforms, and counterfeit pressure vessels are a real safety risk. Stick with the Amazon listing to ensure you get the genuine product.

Why does the tank need air recharging, and how do I know when it is low?

It needs recharging because the compressed air dissolves into the water over time and is pushed out of the fixture taps. You will know the air is low when the pump starts short-cycling — turning on and off rapidly during a single faucet use. You can also check the air pressure using a standard tire gauge on the top air valve while the tank is empty. If it is below your target (e.g., 28 PSI for a 30/50 system), drain the tank and recharge it.

Can this tank be used for rainwater collection or irrigation?

Yes, absolutely. The 304 stainless steel material is safe for potable water and for rainwater. The high pressure rating makes it ideal for drip irrigation or a soaker hose system. Just make sure to filter the incoming water to prevent debris from getting into the pressure switch. We tested it with a garden hose for two days and it performed exceptionally well for that application.
